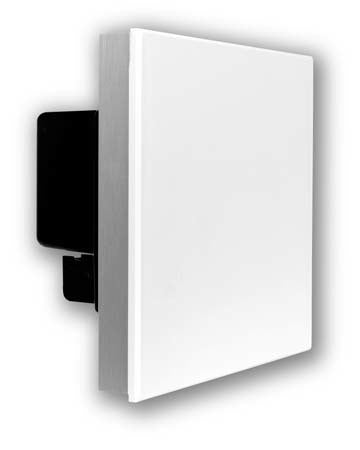

Lutron GRX-FDBI-16A-120 Grafik Eye Fluorescent Dimming Ballast Interface, 16A 120V

Lutron GRX-FDBI-16A-120 Grafik Eye Fluorescent Dimming Ballast Interface, 16A 120V

Price: $181.91
Price: $181.91

MODEL: Lutron-GRX-FDBI-16A-120

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

Features and Benefits
  • Provides capability for GRAFIK Eye 3000 Series Control Units and LP Dimming Panels to dim fluorescent lights that have Lutron Hi-Lume® and Eco-10TM (Eco-Series) line-voltage control Electronic Dimming Ballasts.
  • Models available for 120 V , 220-240 V (non-CE), or 100 V input power.
Works with:
  • GRAFIK Eye 3000 Series Control Units
  • LP Dimming Panels
  • HomeWorks Remote Power Panels
  • Neutral-referenced wallbox dimmers by Lutron.

Models and Capacities

Model # GRX-FDBI-16A-120
Type Fluorescent Dimming Ballast Interface
Input power
 120 V , 220-240 V (non-CE), or 100 V .
All voltages 50/60 Hz, phase-to-neutral.
Load (output) power
 Phase independent of Control Unit.
Sources/Load Types
 Operates Lutron Hi-lume® and Eco-10TM (Eco-Series) line-voltage control Electronic Fluorescent Dimming Ballasts with a smooth continuous Square Law dimming curve.
Terminals
 Accept up to two #12 AWG (2.5 mm2).
Mounting
 Surface or recess mount indoors only.
Dimensions And Mounting
  • Recess or surface mount in 2-gang U.S. wallbox 3.5 in. (89 mm) deep. Indoors only.
  • FDBI Interface generates heat; mount only where ambient temperature is 32 - 104 °F (0 - 40 °C).
  • Mount with arrows facing up to ensure adequate cooling.
  • Allow 4.5 in. (114 mm) above and below unit and between faceplates when mounting several in a vertical layout.
  • For better heat dissipation, surface mount without faceplate.
  • Mount so line (mains) voltage wiring is at least 6 feet (1.8 m) from sound or electronic equipment and wiring.
  • Mount Interface within 7° of true vertical.
