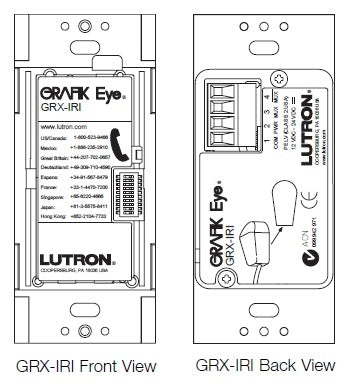

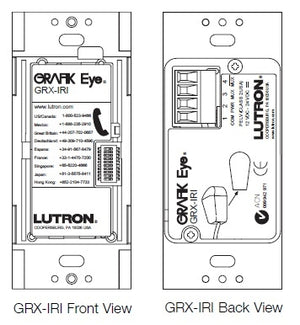

Lutron GRX-IRI Grafik Eye 3000 Infrared Interface

Description

The GRX-IRI Infrared Interface provides a simple, low cost solution for auxiliary components equipped with an IR emitter to control a Grafik Eye system. Up to 8 Grafik Eye Control Units can be Assigned to listen to the GRX-IRI.

Features & Benefits

• The GRX-IRI Interface allows auxiliary systems to access basic functions using standard Lutron IR codes. These functions include:

  • Scene selection (16 Scenes and Off) on the Assigned group of Grafik Eye Control Units .
  • Temporary Master Raise/Lower of all zones on the Assigned group of Grafik Eye Control Units.
• For ultimate flexibility, the advanced set of Lutron
  PRO-IR codes can be used. These codes allow additional features including:

  • Scene selection (16 Scenes and Off) on any Grafik Eye Control Unit in the system .
  • Temporary Master Raise/Lower of all zones on any Grafik Eye Control Unit in the system.
  • Raise/Lower any zone on any Grafik Eye Control Unit in the system.
  • Save the current settings as a Scene (Function only available when using Grafik Eye 3500 or 4500 Series Control Units).
• The PRO-IR codes can only be used with compatible controls. These include:

  • GRX-IRI - Grafik Eye IR Interface
  • SG/EGRX-PRO - SeeTouch / European Programming Wallstation for use with Programmable Universal Remote Controls. Infrared codes available from Lutron.

Model #	GRX-IRI
Type	Accessory Interfaces
Power	12/24 V Direct Current
System Communications and Capacity	Connect to Grafik Eye system using Class 2 (PELV) wiring. The GRX-IRI uses one wallstation address.
