Lutron GRX-PCBL346S-500 Grafik Eye Non-Plenum Rated 500 ft Low-Voltage 4 Copper Cable for Class 2 Applications

Lutron GRX-PCBL346S-500 Grafik Eye Non-Plenum Rated 500 ft Low-Voltage 4 Copper Cable for Class 2 Applications

Price: $776.72
Price: $776.72

MODEL: Lutron-GRX-PCBL346S-500

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

Features & Benefits
  • Listed as cable type CL3.
  • Available in 500 ft. (150m) spool.

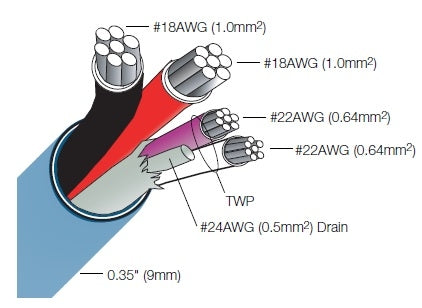

  • Five conductors:
    Common – #18AWG (1.0mm2)
    Power – #18AWG (1.0mm2)
    MUX Data – #22AWG (0.64mm2)
    MUX Data – #22AWG (0.64mm2)
    Drain Wire – #24AWG (0.5mm2)
  • Total Outer Jacket Diameter: 0.35" (9mm).
  • 300V Rated.
  • PVC Sheath, 75°C rated.
  • UL/CSA Listed.
  • Rated FT1.
Model # GRX-PCBL346S-500
Type Non-Plenum Rated Cable for use with GRAFIK Eye 3000 Systems
