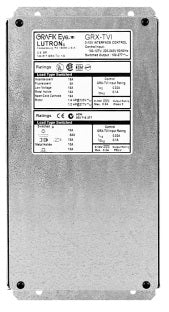

Lutron GRX-TVI Grafik Eye 0-10 Volt Interface

Name: Lutron GRX-TVI Grafik Eye 0-10 Volt Interface
Brand: Lutron
SKU: Lutron-GRX-TVI
Price: 238.0 USD
Availability: InStock

Price: $238.00

MODEL: Lutron-GRX-TVI

Usually Ships in 3-5 business days. Urgent Project? contact us >>

Ordering a large quantity? Request a quote

description

Features & Benefits

Lets a Control Unit switch and dim fluorescent lights that have Lutron Eco-10TM (TVE Series) Electronic Dimming Ballasts.
Switches and dims any 0-10V electronic fluorescent dimming ballast powered by 100-277V (ballast must source/provide 10V supply). Switches up to 10A of electronic capacitive fluorescent ballasts.
Also switches motors – 1/4HP @ 100- 127V, 1/2HP @ 200-277V.
Lets you connect up to five Ten Volt Interfaces to one Control Unit zone. This allows one zone to control up to five 16A circuits of Eco-10TM (TVE Series) Electronic Dimming Ballasts or five motors.
Provides 100-277V power to loads.
Requires 100-127V or 200-240V power for internal operations.

Switching Load Types and Capacities Can switch 100-277V

Model #	GRX-TVI
Type	Power Interfaces
Power	Load (output) power: 100-277V. Phase independent of lighting control. Control circuit: 40W/VA @ 100-127V or 200-240V, 50/60Hz, same phase as lighting control. Provides power for internal operations.
O-10V Dimming Control	Output rating: 10μA-300mA. Sinks current only (ballast must source/provide 10V supply).
Zone Capacity	Up to five Ten Volt Interfaces per Control Unit zone.
Key Design Features	Complies with standard UL 508. Provides a Class 2 isolated 0 -10V output signal that conforms to EN60929 and IEC929. Accepts a constant-gate drive fluorescent signal (100 -127V or 200 -240V; 50/60Hz).
