Lutron HQRD-H1RLD-MS HomeWorks QS Dual Group RF Hybrid seeTouch Keypad with Raise/Lower Keypad and 450W Neutral Optional Dimmer, in Mocha Stone

• Matching Wallplate Sold Separately
• HomeWorks_® QS RF Hybrid Keypads function as a dimmer and keypad combined into a single device. RF Hybrid Keypads are great for retrofit applications since they eliminate the need to install two separate devices.
• HomeWorks_® QS RF Hybrid Keypads have an available neutral wire terminal that allows them to be installed in either two-wire or neutral wire installations. Connecting the neutral wire to a Hybrid Keypad allows a lower minimum load to be used. Also, normal keypad operation will be available even if the lighting load is not installed or if the lamp is burned out. If a neutral wire is available in the wallbox it should be connected to the silver terminal on the Hybrid Keypad. If a neutral wire is not available and not desired, then the silver terminal should be tightened without any wires connected to it. RF Hybrid Keypads can be installed in either single location or multi-location (with Remote Dimmer) installations.
• HomeWorks_® QS RF Hybrid Keypads can be controlled as part of a lighting control system and incorporate advanced features such as fade on / fade off and rapid full on.
• HomeWorks_® QS RF Hybrid Keypads feature large, easy-to-use buttons, plus a unique backlit engraving option that makes them readable any time of the day or night. The Hybrid Keypad buttons are rounded, allowing engraving to be displayed at an upward angle, increasing readability. HomeWorks_® QS RF Hybrid Keypads include a Front Accessible Service Switch (FASSTM) for safe lamp replacement.
• Use only Lutron_® Designer (Claro_® or Satin Colors_® wallplates. The mechanical design of the keypad is ONLY compatible with Lutron_® wallplates and is NOT compatible with any other manufacturer’s wallplate. Wallplates are sold separately. Lutron_® Claro_® and Satin Colors_® wallplates snap on with no visible means of attachment.
• Replacement Kits are available in a variety of colors and with custom engraving to clearly identify each button’s function.

Design Features

• Keypad buttons are programmable to select scene or room preset levels or positions.
• At the press of a keypad button, lights fade ON or OFF to desired levels and shades/draperies open or close to desired positions.
• Adjustable backlight intensity.
• Prepaid engraving included. Redeemable for one engraved Replacement Kit.
• Internal dimmer is assigned to top button by default, but can be reassigned to any button on the Hybrid Keypad. Tap top button to toggle load ON / OFF.
• Internal dimmer can be assigned to any programmable input.
• Can be installed in two-wire or neutral wire applications.
• Can be installed in either single location or multi-location (with Remote Dimmer) installations.


Model #	HQRD-H1RLD-MS
Color	Mocha Stone
Type	Dual Group with Raise/Lower Keypad and 450 W Neutral Optional Dimmer (Incandescent / Halogen / Magnetic Low-Voltage)
Power	120 V~ 50 / 60 Hz
Typical Power Consumption	0.75 W Test conditions: load is off, all backlights on medium intensity, two status LEDs on (two presets active), keypad powered at 120 V~.
Regulatory Approvals	UL, CSA, NOM, FCC, IC, COFETEL
Environment	Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0% to 90% humidity, non-condensing. Indoor use only.
Communications	Hybrid Keypads communicate with the HomeWorks® QS system through Radio Frequency (RF) and must be located within 30 ft (9 m) of a repeater. Remote dimmers are not required to be within a specific range of a repeater.
ESD Protection	Tested to withstand electrostatic discharge without damage or memory loss, in accordance with IEC 61000-4-2.
Surge Protection	Tested to withstand surge voltages without damage or loss of operation, in accordance with IEEE C62.41-1991 Recommended Practice on Surge Voltages in Low-Voltage AC Power Circuits.
Power Failure	Power failure memory: should power be interrupted, the control will return to its previous state when power is restored.

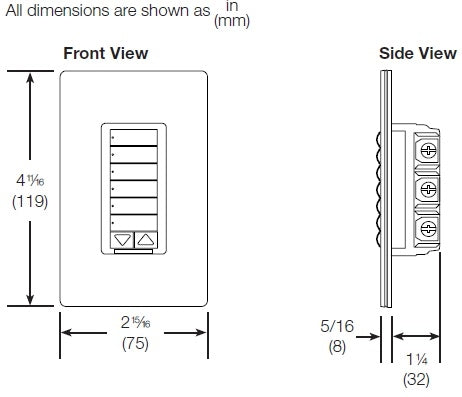

Mounting	Requires a U.S. wallbox. 3 ½ in (89 mm) deep recommended, 2 ¼ in (57 mm) deep minimum. If mounting one control above another, leave at least 4 ½ in (114 mm) vertical space between them.
Wiring	Uses conventional 3-way and 4-way wiring.
Warranty	8 Year Limited Warranty. http://www.lutron.com/resiinfo
