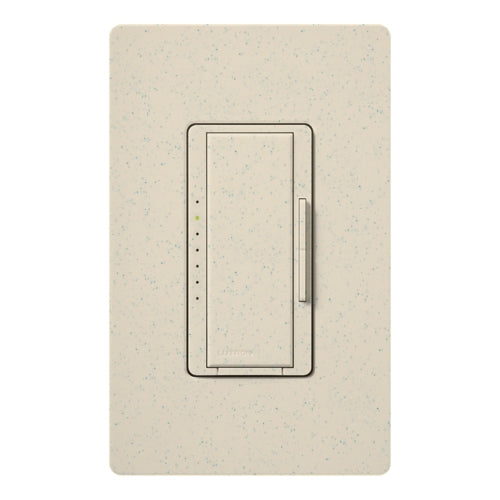

Lutron HWD-6ND-LS HomeWorks QS Wired Maestro 150W LED or 600W Incandescent or 450W Magnetic Low Voltage Single Pole / Multi Location Dimmer, Neutral Wire Required, in Limestone

HomeWorks QS Wired Maestro local controls function much like standard dimmers, but can be controlled as part of a lighting control system. Local lighting controls are useful in locations where single circuits of lighting need to be dimmed.

HomeWorks QS Wired Maestro dimmers incorporate advanced features such as fade on / fade off, delayed long fade to off, and rapid full on.

HomeWorks QS Wired Maestro local controls include a Front Accessible Service Switch (FASS) for safe lamp replacement. HomeWorks QS Wired Maestro local controls can be installed in either single pole or 3-way applications. HomeWorks Wired Maestro Dimmers may be used with HomeWorks Maestro Remote Dimmers to provide dimming control from up to 9 additional locations.

Features & Benefits

• Matching Wallplate Sold Separately
• Use Remote Dimmer HQD-RD for multi-location installations
• On a single-tap, lights fade ON or OFF.
• On a double-tap, lights go to full ON.
• When ON, press and hold the tapswitch to engage the delayed long fade to OFF.
• Light levels can be fine-tuned by pressing and holding the dimming rocker until the desired light level is reached.

Model #	HWD-6ND-LS
Color	Limestone
Type	Single Pole / 3-Way / Multi-Location Dimmer
Load Rating/ Load Type	150W LED 600W Incandescent 450W / 600VA Magnetic Low Voltage
Voltage	120/127VAC, 50/60Hz
Neutral Wire Required	Yes
