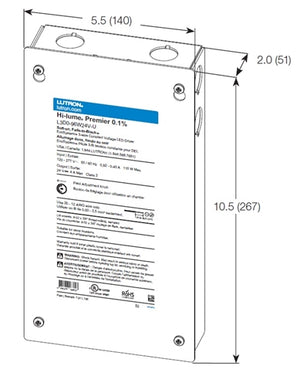

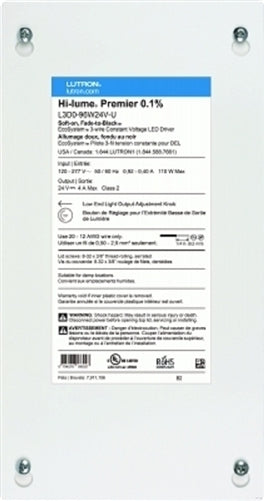

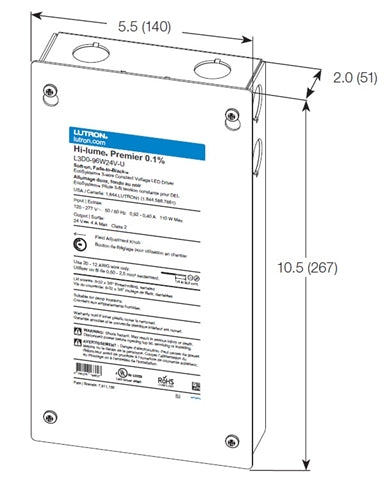

Lutron-L3D0-96W24V-U Hi-lume Premier 0.1% EcoSystem/3-wire Constant Voltage 24V LED Driver with Soft-on, Fade-to-Black

The Hi-lume Premier 0.1% Constant Voltage Driver (L3D0) is a high-performance LED driver capable of controlling up to 96 W of 24 V- constant voltage loads. This driver provides smooth and continuous dimming down to 0.1% low-end. It is ideal for use with strip lighting in applications such as coves, under or over cabinet lighting and pathway lighting. The driver is UL Listed with an integrated wiring compartment and can be mounted up to 150 ft (45 m) away from the load.

Features

• Continuous, flicker-free dimming from 100% to 0.1%. (Light output at 0.1% depends on installation and light engine efficacy)
• Soft-on, Fade-to-Black operation for EcoSystem controls: fades smoothly between 0% and 0.1% when turned on and off for an incandescent like experience. (Soft-on, Fade-to-Black dimming technology is not available for 3-wire controls.)
• PWM dimming meets IEEE1789 over the entire dimming range.
• UL Listed for United States and Canada (cULus).
• NOM certified for Mexico.
• Field Adjustment Knob offers customer low-end light output tuning for better fixture-to-fixture matching.
• Guaranteed dimming performance when used with Lutron controls: – HomeWorks QS, Energi Savr Node units with EcoSystem controls, GRAFIK Eye QS with EcoSystem controls, PowPak with EcoSystem dimming modules, PowPak with EcoSystem wireless fixture controls, and Quantum systems, allowing for integration into a planned or existing EcoSystem lighting control solution. – Lutron 3-wire controls and interfaces.
• Protected from miswires of input power, up to 277 V~, to EcoSystem control inputs.
• Rated lifetime of 50,000 hours at 40 °C (104 °F) ambient temperature and maximum loading.
• FCC Part 15 compliant for commercial applications at 120–277 V~ and residential applications at 120 V~.
• Inrush limiting allows full loading of circuit breakers without nuisance tripping.
• 100% end-of-line performance tested at a Lutron factory.
• RoHS compliant.
• Restores all settings after power failure.
• Barrier provided for Class 2 separation in the wiring compartment.
• Redundant connections on line and control terminals for easy daisy chain wiring.
• Redundant connections on output terminals allow for easy wiring of two LED load home runs.
• Class 2 output designed to withstand hot swap.
