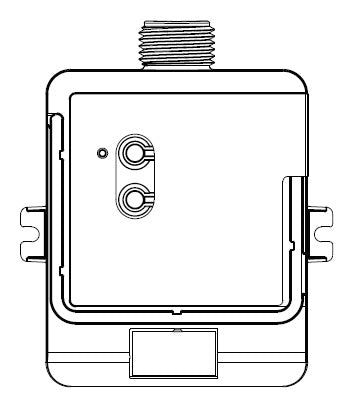

Lutron LMJ-16R-DV-B RF Relay Module with Softswitch 16A 120/277V, 431.0-437.0 MHz

Lutron LMJ-16R-DV-B RF Relay Module with Softswitch 16A 120/277V, 431.0-437.0 MHz

Price: $128.34
Price: $128.34

MODEL: Lutron-LMJ-16R-DV-B

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

Untitled Document

The RF Relay Module with Softswitch is a radio frequency (RF) device that uses Lutron patented Softswitch technology to control up to 16 A of general-purpose loads based on input from RadioRA 2 and HomeWorks QS systems.

Features and Benefits

  • LutronR patented SoftswitchR technology prevents arcing of relay contacts, extending product lifetime.
  • Various operating voltages available—refer to model number chart below for details on voltage requirements.
  • Capable of switching 16 A of general-purpose loads.
  • Utilizes LutronR Clear ConnectR RF Technology—refer to model number chart below for frequency band data and Lutron system compatibility.
  • Mounts to an electrical junction box through a 1/2 in or 21 mm trade-size knockout opening.
  • Complies with requirements for use in a compartment handling environmental air (plenum) per NECR 2011 300.22(C)(3) (LMJ- model only).
Model# LMJ-16R-DV-B
Power 120/277 V~ 50/60 Hz 16 A (LMJ- model) 0.5 HP at 120 V~ 1.5 HP at 277 V~
Typical Power Consumption < 1.0 W
Typical power test conditions: all loads off, top LED on
Regulatory Approvals UL, UL 2043 Plenum Rated, FCC Approved. Complies with the limits for a Class B device, pursuant to Part 15 of the FCC rules: CSA, IC, NOM (LMJ- model)
Environment Ambient operating temperature: 32 °F to 131 °F (0 °C to 55 °C)
Ambient operating humidity: 0% to 90% humidity, non-condensing.
Indoor use only.
Communications Operates using Clear Connect RF Technology for reliable wireless communication; refer to model number chart on page 1 PDF Specfication for band frequency details. RF range is 30 ft (9 m) from repeaters. Contact Lutron for applications using foil-backed or metallic ceiling tiles.
Load Maximum load: 16 A general purpose. No minimum load requirements.
Load types include, but are not limited to: Incandescent, MLV, ELV, Resistive, Inductive, Magnetic fluorescent, and Electronic fluorescent.
Surge Protection Tested to withstand surge voltages without damage or loss of operation, in accordance with IEEE C62.41-1991 Recommended Practice on Surge Voltages in Low-Voltage AC Power Circuits.
Mounting Mounts to an electrical junction box through a 1/2 in (21 mm) trade-size knockout opening.
