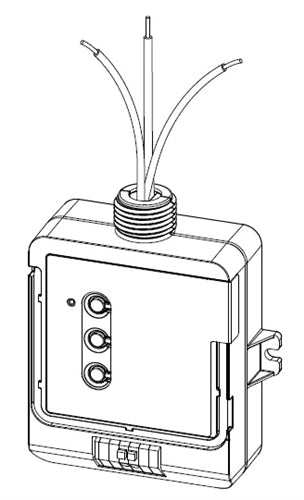

Lutron LMJ-5T-DV-B RF Dimming Module with 0-10V Control 5A 120/277V, 431.0-437.0 MHz

Lutron LMJ-5T-DV-B RF Dimming Module with 0-10V Control 5A 120/277V, 431.0-437.0 MHz

Price: $199.34
Price: $199.34

MODEL: Lutron-LMJ-5T-DV-B

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

Untitled Document

The RF Dimming Module with 0–10 V- control is a radio frequency (RF) control that operates 0–10 V- controlled fluorescent ballasts or LED drivers based on input from RadioRA 2 and HomeWorks QS systems.

Features and Benefits

  • 0-10 V- control link automatically sources or sinks up to 60 mA to third-party fixtures.
  • Switches line voltage up to 5 A.
  • Configurable high- and low-end trim.
  • Various operating voltages available—refer to model number chart below for details on voltage requirements.
  • Utilizes Lutron Clear Connect RF Technology—refer to model number chart below for frequency band data and Lutron system compatibility.
  • RadioRA 2 Inclusive or HomeWorks QS software required for system functionality.
  • Mounts to an electrical junction box through a 1/2 in (21 mm trade-size) knockout opening.
  • Complies with requirements for use in a compartment handling environmental air (plenum) per NECR 2011 300.22(C)(3) (LMJ- model only).
Model# LMJ-5T-DV-B
Power 120/277 V~ 50/60 Hz 5 A (LMJ- model)
Typical Power Consumption < 1.0 W
Typical power test conditions: all loads off
Regulatory Approvals UL, UL 2043 Plenum Rated, FCC Approved. Complies with the limits for a Class B device, pursuant to Part 15 of the FCC rules: CSA, IC, NOM (LMJ- model)
Environment Ambient operating temperature: 32 °F to 131 °F (0 °C to 55 °C)
Ambient operating humidity: 0% to 90% humidity, non-condensing.
Indoor use only.
Communications Operates using Clear Connect RF Technology for reliable wireless communication; refer to model number chart on page 1 PDF Specfication for band frequency details. RF range is 30 ft (9 m) from repeaters. Contact Lutron for applications using foil-backed or metallic ceiling tiles.
Load 0-10 V- Control Link Maximum Load: 60 mA, source or sink automatically configures. Control link compatible with ANSI E1.3 2001 (R2006), IEC 60929 Annex E.
Switched Maximum load: 5 A lighting. No minimum load requirements. Load types include, but are not limited to: MLV, ELV, Incandescent, Magnetic fluorescent, Electronic fluorescent and LEDs.
Surge Protection Tested to withstand surge voltages without damage or loss of operation, in accordance with IEEE C62.41-1991 Recommended Practice on Surge Voltages in Low-Voltage AC Power Circuits.
Mounting Mounts to an electrical junction box through a 1/2 in (21 mm) trade-size knockout opening.
