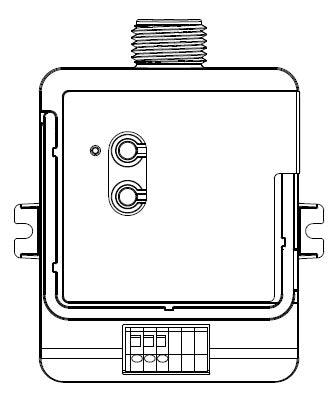

Lutron LMJ-CCO1-24-B Low Voltage RF CCO Module 24V, 431.0-437.0 MHz,

Lutron LMJ-CCO1-24-B Low Voltage RF CCO Module 24V, 431.0-437.0 MHz,

Price: $99.67
Price: $99.67

MODEL: Lutron-LMJ-CCO1-24-B

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

Untitled Document

The RF CCO Module is a low-voltage radio frequency (RF) control that provides a single dry contact closure output based on input from RadioRA 2 and HomeWorks QS systems.
It can be powered by 24 V~ or 24 V- for easy connection and integration into building management, HVAC, VAV, and other 3rd-party systems.

Features and Benefits

  • Single contact closure output including both normally open (NO) and normally closed (NC) dry contacts
  • Maintained or momentary output type
  • Operates at 24 V~ or 24 V-
  • Utilizes Lutron Clear Connect RF Technology
  • Screw tabs provided for surface mounting (recommended); or mounts to an electrical junction box through a 1/2 in or 21 mm trade size
    knockout opening
  • Complies with requirements for use in a compartment handling environmental air (plenum) per NECR 2011 300.22(C)(3) (LMJ- model only)
Model# LMJ-CCO1-24-B
Power IEC PELV/NECR Class 2
Operating voltage: 24 V~ / 24 V; Operating current, nominal: 45 mA (24 V~), 35 mA (24 V-)
Typical Power Consumption < 1.0 W
Typical power test conditions: all loads off, CCO LED on
Regulatory Approvals UL, UL 2043 Plenum Rated, FCC Approved. Complies with the limits for a Class B device, pursuant to Part 15 of FCC rules, IC, (LMJ- model only)
Environment Ambient operating temperature: 32 °F to 131 °F (0 °C to 55 °C)
Ambient operating humidity: 0% to 90% humidity, non-condensing.
Indoor use only.
Communications Operates using Clear Connect RF Technology for reliable wireless communication; refer to model number chart on page 1 PDF Specfication for band frequency details. RF range is 30 ft (9 m) from repeaters. Contact Lutron for applications using foil-backed or metallic ceiling tiles.
Contact Closure Output Accepts input voltages of 0 to 24 V~ / 0 to 24 VResistive
Load: 1.0 A (0 to 24 V-), 0.5 A (0 to 24 V~)
Provides both normally open (NO) and normally closed (NC) dry contacts. Maintained or momentary output type. Output is latching.
Minimum Close Time: 500 ms.
Mounting Screw tabs provided for surface mounting (recommended); or mounts to a electrical junction box through a 1/2 in or 21 mm trade size knockout opening.
Low Voltage CCO Wiring CCO terminals accept 20 to 16 AWG (0.5 to 1.5 mm2) solid or stranded wire.
