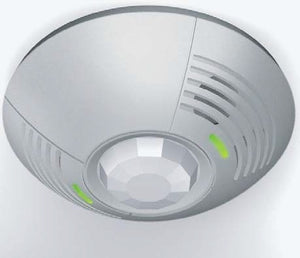

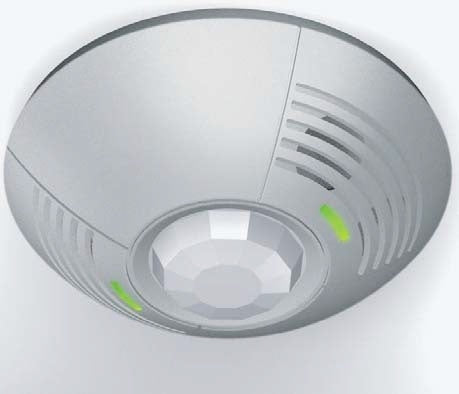

Lutron LOS-CDT-500R-WH Dual Technology Ceiling Mount Sensor with Ultrasonic and Passive Infrared Sensors, Photo Cell and Contact, 500 sq ft Coverage and 180 deg Field of View

Description

The LOS-CDT Series ceiling-mount dual-technology sensors can integrate into Lutron systems or function as standalone controls using a Lutron power pack. The technology eliminates manual sensitivity and timer adjustments during installation and over the life of the product.

Features & Benefits

• Intelligent, continually adapting sensor
• Ultrasonic (US) combined with passive infrared (PIR) sensing provide high sensitivity, high noise immunity, and excellent false tripping immunity
• Suited for complex environments that are difficult to control with single-technology sensors
• Snap-locks to ceiling-mounted cover plate
• Non-Volatile Memory: settings saved in protected memory are not lost during power outages
• Affords choice of turning lights off or dimming to a preset level in the unoccupied state when integrated with a Lutron system.


Model #	LOS-CDT-500R-WH
Type	Occupant Sensors
Coverage	500 sq ft (46 m2)
Field of View	180°
Timer Adjustment	Automatic mode: Continually adapting sensor automatically adjusts settings to the space. Manual mode: 8 to 30 minutes. Test mode: 8 seconds
LED Lamp	Red: infrared motion detected Green: ultrasonic motion detected
Power	Operating voltage: 20 - 24 V , PELV (Class 2: USA) low-voltage Operating current: 33 mA nominal Control output: 20 - 24 V active high logic control signal with short-circuit protection, open collector when unoccupied
Adaptive Functions	Installation: 60 minutes Learning: 4 weeks for response to error conditions, air current adaptation, and timer optimization Post-learning occupancy periods 24-hour circadian occupancy periods learned Weekly occupancy periods learned Adjustments in post-learning period Generally occupied periods (threshold = high-sensitivity mode) Generally unoccupied periods (threshold = miser mode)
Contact Rating (R Models only)	SPDT 500 mA rated at 24 V isolated relay
Photo Cell (R Models only)	Prevents light from turning on when there is sufficient natural light. Sensitivity: 0 - 1000 LUX adjustable
