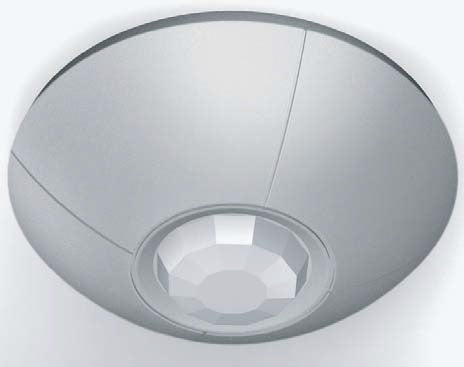

Lutron LOS-CIR-450-WH Ceiling Mount Passive Infrared Sensor, 450 sq ft Coverage and 360 deg Field of View

Description

The LOS-CIR Series ceiling-mount passive infrared sensors can integrate into Lutron systems or function as standalone
controls using a Lutron power pack. The sensor uses a small semiconductor heat detector that resides behind a multi-zone optical lens. The sensor's detector is sensitive to the heat emitted by the human body. In order to trigger the sensor, the source of heat must move from one range of detection to another. Non-moving hot objects will not cause the lights to turn on.

Features & Benefits

• Intelligent, continually adapting passive infrared (PIR) sensor
• Passive infrared sensing
• Reliable motion detection with high error immunity
• Snap-locks to ceiling-mounted cover plate
• Non-Volatile Memory: settings saved in protected memory are not lost during power outages
• Affords choice of turning lights off or dimming to a preset level in the unoccupied state when integrated with a Lutron system.


Model #	LOS-CIR-450-WH
Type	Occupant Sensors
Color	White
Coverage	450 sq.ft. (42 m2)
Field of View	360°
Timer Adjustment	Automatic mode: Continually adapting sensor automatically adjusts settings to the space. Manual mode: 8 to 30 minutes. Test mode: 8 seconds
LED Lam	Red: infrared motion detected
Power	Operating voltage: 20 - 24 V , PELV (Class 2: USA) low-voltage Operating current: 33 mA nominal Control output: 20 - 24 V active high logic control signal with short-circuit protection, open collector when unoccupied UL and CUL listed
Operating Environment	Temperature: 32 to 104 °F (0 to 40 °C) Relative humidity: less than 95%, non-condensing For indoor use only
