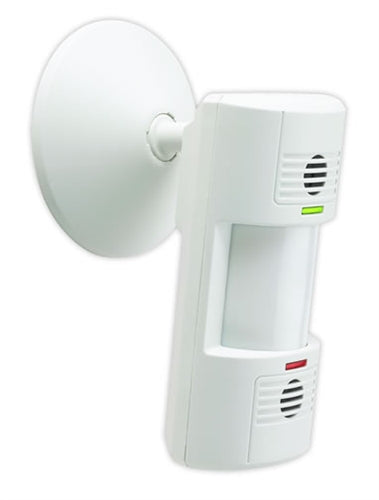

Lutron LOS-WDT-WH Dual Technology Wall Mount Sensor with Ultrasonic and Passive Infrared Sensors, 1600 sq ft Coverage and 110 deg Field of View

Description

The LOS-WDT Series wall-mount dual-technology sensors are used to control lighting in spaces that have pendant fixtures, ceiling fans, or high ceilings (more than 12 ft./ 3.7 m), where ceiling-mount occupant sensors would not function reliably.
The adaptive technology eliminates manual sensitivity and timer adjustments during installation and over the life of the product.

Features & Benefits

• Intelligent, continually adapting sensor
• Ultrasonic (US) combined with passive infrared (PIR) sensing provide high sensitivity, high noise immunity, and excellent false tripping immunity
• Suited for complex environments that are difficult to control with single-technology sensors
• Flexible base mounting on wall or ceiling
• Aim and lock: base mount permits fast alignment
• Non-Volatile Memory: settings saved in protected memory are not lost during power outages
• Affords choice of turning lights off or dimming to a preset level in the unoccupied state when integrated with a Lutron system.


Model #	LOS-WDT-WH
Type	Occupant Sensors
Coverage	1600 sq.ft. (488 m2)
Field of View	180°
Timer Settings	Automatic mode: Continually adapting sensor automatically adjusts settings to the space. Manual mode: 4 to 30 minutes. Test mode: 8 seconds
LED Lamp	Red: infrared motion Green: ultrasonic motion
Power	Operating voltage: 20 - 24 V , PELV (Class 2: USA) low-voltage Operating current: 33 mA nominal Control output: 20 - 24 V active high logic control signal with short-circuit protection, open collector when unoccupied UL and CUL listed
