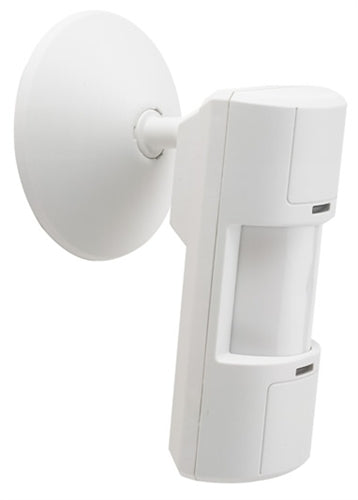

Lutron LOS-WIR-WH Wall Mount Passive Infrared Sensor, 1600 sq ft Coverage and 110 deg Field of View

Description

The LOS-WIR wall-mounted passive infrared sensor is used in spaces with pendant fixtures, ceiling fans, or high ceilings (more than 12 ft./3.7 m). The sensor detects large body motions over 40 ft. (12 m) away, and smaller motions such as hand movements up to 25 ft. (7.6 m) away.
Designed to meet the challenges found in a wide variety of spaces, the LOS-WIR works well in spaces with overhead fans and space heaters. Work areas, storage facilities, storerooms, indoor garages, and rooms with pendant fixtures are ideal. The internal microprocessor analyzes the information from the PIR technology and determines the optimum setting to use in order to properly cover the space.
The LOS-WIR identifies, records, and learns normal occupancy cycles of a space. Over an initial 4-week period, the sensor logs room occupancy for each 24-hour period. The information gathered by the sensor is used to automatically adjust the dual internal sensitivity bias threshold. This technology eliminates time-consuming adjustments and callbacks found in non-intelligent sensors.

Features & Benefits

• Intelligent, continually adapting sensor
• Passive infrared (PIR) sensing
• Excellent false tripping immunity
• Use in rooms with pendant fixtures and storage areas
• Flexible base mounting on wall or ceiling
• Aim and lock: base mount permits fast alignment
• Non-Volatile Memory: settings saved in protected memory are not lost during power outages
• 1,600 sq.ft. (488 m2) of coverage when used where the ceiling height is between 8 - 12 ft. (2.4 - 3.7 m)
• Affords choice of turning lights off or dimming to a preset level in the unoccupied state when integrated with a Lutron system.


Model #	LOS-CIR-450-WH
Type	Occupant Sensors
Color	White
Coverage	450 sq.ft. (42 m2)
Field of View	360°
Timer Adjustment	Automatic mode: Continually adapting sensor automatically adjusts settings to the space. Manual mode: 4 to 30 minutes. Test mode: 8 seconds
Power	Operating voltage: 20 - 24 V , PELV (Class 2: USA) low-voltage Operating current: 33 mA nominal Control output: 20 - 24 V active high logic control signal with short-circuit protection, open collector when unoccupied UL and CUL listed
Operating Environment	Temperature: 32 to 104 °F (0 to 40 °C) Relative humidity: 0% to 95%, non-condensing For indoor use only
