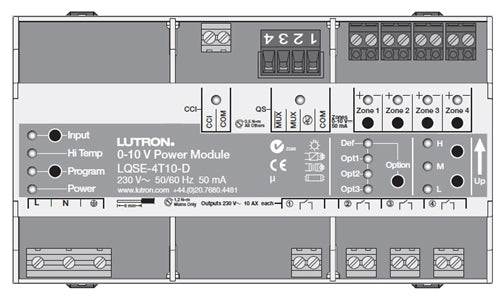

Lutron LQSE-4T10-D Power Module unit for 0-10V Dimming / Switching

The Power Module family is a group of modular products for the control of lighting loads.

Features
• Includes QS link for seamless connection to a HomeWorks QS system.
• Power Module units can be used in a HomeWorksR QS system to control and manage light in an entire home or building.

Power
• 230 V 50/60 Hz
• Lightning strike protection meets ANSI/IEEE standard 62.31-1980. Can withstand voltage surges of up to 6 000 V and current surges of up to 3 000 A.
• Current draw: 50 mA max
• Standby power : 1 W
• BTUs/hour when fully loaded: 4

Output Zone Ratings
• Each zone is rated at 10 AX for switching. Rated for resistive, capacitive, or inductive lighting loads as defined by IEC/EN 60669-2-1.
• Switched outputs utilize latching relays to maintain relay state if control power is lost.
• 0-10 V rated for 50 mA maximum output, source or sink per zone.
