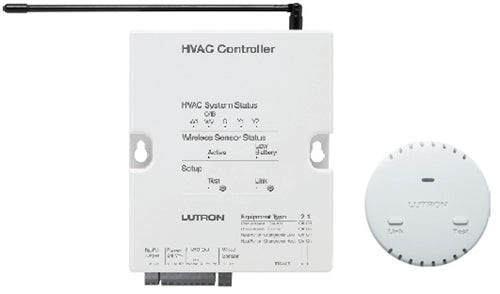

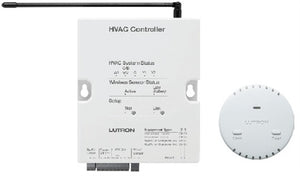

Lutron LR-HVAC-INT-MN Temperature Control Integration Package, includes one wireless temperature sensor and one HVAC Controller in Midnight

Description

An out of view HVAC controller replaces the wall-mounted thermostat. It communicates with a wireless temperature sensor and seeTemp wall controls via Clear Connect™ RF technology to simplify installation and ensure reliable operation.

Wireless Temperature Sensor Features and Benefits

• No wires—5 year battery life
• If more than one sensor is associated with an HVAC controller, temperatures are averaged
• Communicates via Lutron Clear Connect RF Technology
• Compatible only with the HVAC controller
• Maximum of 5 wireless temperature sensors per RadioRA® 2 main repeater or HomeWorks® QS RF link

HVAC Controller Features and Benefits

• Connects to and controls HVAC equipment using standard low-voltage thermostat wiring
• Integrates temperature control with a Lutron whole-home control system
• Communicates via Lutron® Clear Connect™ RF Technology
• Includes wired return air duct sensor (required)
• Note: HVAC controller should be installed by a professional HVAC contractor
• Size: 4.25" X 5.25"

System Diagrams

Model #	LR-HVAC-INT-MN
Color	Midnight
Type	Temperature Control Integration Package
