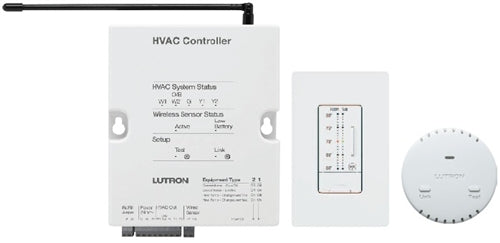

Lutron LR-HVAC-PKG-C-WH Temperature Control Package with Celsius SeeTemp, includes one wireless temperature sensor, one HVAC controller and one Celsius seeTemp wall control

Description

An out of view HVAC controller replaces the wall-mounted thermostat. It communicates with a wireless temperature sensor and seeTemp wall controls via Clear Connect™ RF technology to simplify installation and ensure reliable operation.

Temperature control package with Celsius seeTemp includes:
(1) LRF2-TWRB-SW Wireless Temperature Sensor
(1) HVAC Controller
(1) LRD-WST-C-WH seeTemp Wall Control (Celcius)

Wireless Temperature Sensor Features and Benefits

• No wires—5 year battery life
• If more than one sensor is associated with an HVAC controller, temperatures are averaged
• Communicates via Lutron Clear Connect RF Technology
• Compatible only with the HVAC controller
• Maximum of 5 wireless temperature sensors per RadioRA® 2 main repeater or HomeWorks® QS RF link

HVAC Controller Features and Benefits

• Connects to and controls HVAC equipment using standard low-voltage thermostat wiring
• Integrates temperature control with a Lutron whole-home control system
• Communicates via Lutron® Clear Connect™ RF Technology
• Includes wired return air duct sensor (required)
• Note: HVAC controller should be installed by a professional HVAC contractor
• Size: 4.25" X 5.25"

seeTemp Wall Control Features and Benefits

• eco button adjusts temperature 2º F to save energy without sacrificing comfort
• Celsius and Fahrenheit versions available
• Multiple seeTemp wall controls may be used—providing multi-location control
• Communicates via Lutron® Clear Connect™ RF Technology to ensure reliable communication and consistent performance


System Diagrams

Model #	LR-HVAC-PKG-C-WH
Color	White
Type	Temperature Control Package with Celsius seeTemp
