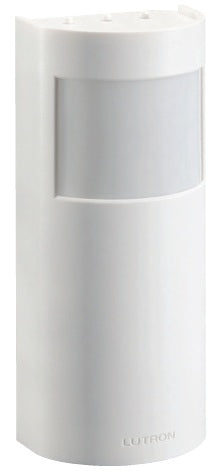

Lutron LRF2-OKLB-P-WH Radio Powr Savr Wireless RF 90 deg Corner-mount Occupancy/Vacancy Sensor, Auto-On/Auto-Off or Manual On/Auto-off in White

Description

Lutron® wall-mounted occupancy and vacancy sensors are wireless battery-powered passive infrared (PIR) sensors that automatically control lights via RF communication to compatible dimming or switching devices. These sensors detect the heat from people moving within an area to determine when the space is occupied. The sensors then wirelessly transmit the appropriate commands to the associated dimming or switching devices to turn the lights on or off automatically. They combine both convenience and exceptional energy savings along with ease of installation.

Features & Benefits

• Wireless occupancy sensor has 2 settings available: Auto-On/Auto-Off, and Manual-On/Auto-Off
• Vacancy model available to meet CA Title 24 requirements
• 10-year battery life design
• Passive infrared motion detection with exclusive Lutron XCTTM Technology
• 180˚ field of view:
  Minor motion = 1500 ft2 (139.4 m2)
  Major motion = 3000 ft2 (278.7 m2)
• 90˚ field of view:
  Minor motion = 1225 ft2 (113.8 m2)
  Major motion = 2500 ft2 (232.3 m2)
• Hallway version with long, narrow field of view: Major motion = coverage of up to 150 ft (45.7 m)
• RoHS compliant
• Simple and intuitive adjustments available for Timeout, Activity, and Auto-On settings
• Accessible test buttons make setup easy
• Lens illuminates during test mode to verify ideal locations
• Up to 3 sensors can be added to each RF dimming or switching device for extended coverage
• Each sensor may be added to up to 10 compatible RF dimming and switching devices for spaces with multiple zones of lighting
• The sensor should be mounted within 60 ft (18.3 m) line of sight or 30 ft (9.1 m) through walls, of the associated
  dimming and switching receiving devices

Model #	LRF2-OKLB-P-WH
Color	White
Type	Wireless RF 90° Corner-Mount Occupancy/Vacancy Sensor
