Lutron LUT-DMX Grafik Eye 3000 DMX-512 Interface

Name: Lutron LUT-DMX Grafik Eye 3000 DMX-512 Interface
Brand: Lutron
SKU: Lutron-LUT-DMX
Price: 1482.7 USD
Availability: InStock

Price: $1,482.70

MODEL: Lutron-LUT-DMX

Usually Ships in 3-5 business days. Urgent Project? contact us >>

Ordering a large quantity? Request a quote

description

Features & Benefits

Allows GRAFIK EyeR lighting controls to operate lighting and other equipment that uses the DMX 512 protocol, including:
- Strobes, fiber optic lighting, and LED-based lamps.
- Fogger machines.
- Animated characters and motorized fixtures.
Converts GRAFIKR zone intensities into DMX 512 channel settings. Each zone is assigned to a DMX 512 channel.

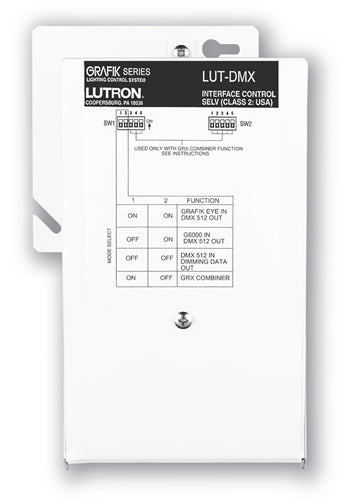

Works with GRAFIK EyeR 3000 and GRAFIK EyeR 4000 Series Control Units, as well as GRAFIK 5000T, GRAFIK 6000R, and GRAFIK 7000T Systems (see DIP switches 1 and 2). Interface does not require an address.

Model #	LUT-DMX
Type	DMX 512 Control Interface
Power	Low-voltage IEC PELV/NECR Class 2 Operating Voltage: 12/24
Zone/ Channel Capacity	Maximum total number of GRAFIK EyeR lighting zones and DMX 512 channels: GRX-3000 Control Units: Up to 48 non-continuous. GRX-4000 Control Units: Up to 64. GRAFIK 5000T Systems: Up to 128. GRAFIK 6000R Systems: Up to 512.
System Communications and Capacity	Low-voltage IEC PELV/NECR Class 2 wiring connects LUT-DMX Interface to other components. One LUT-DMX per system - no address. Does not count as one of the maximum number of addresses (Wallstations, Control Interfaces, or Control Units) allowed on a IEC PELV/NECR Class 2 wiring link.
DMX 512 Link	Three terminals for connecting the LUT-DMX to DMX 512-controlled equipment. Each terminal accepts up to two #18 AWG (1.0 mm2) wires. Link must be 1000 feet or less. Link may be extended with the Lutron MUX-RPTR interface. Link must begin and end with Link Terminators.
