Home > Lutron > Lutron MS-A102-HT Maestro Dual Technology ultrasonic and Passive infrared Occupancy sensor for Single Circuit in Hot

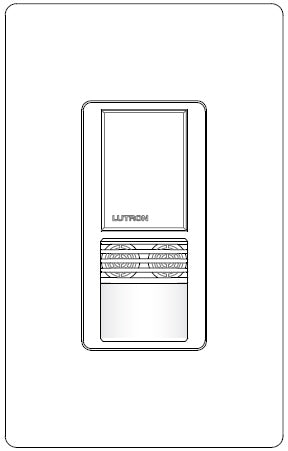

Lutron MS-A102-HT Maestro Dual Technology ultrasonic and Passive infrared Occupancy sensor for Single Circuit in Hot
Lutron MS-A102-HT Maestro Dual Technology ultrasonic and Passive infrared Occupancy sensor for Single Circuit in Hot
Regular price
Price:
$68.84
Regular price
Price:
Sale price
$68.84
Unit price
per
MODEL: Lutron-MS-A102-HT
Usually Ships in 3-5 business days. Urgent Project?
contact us >>
Couldn't load pickup availability
Ordering a large quantity?
Request a quote
description
Features & Benefits
- Matching Wallplate Sold Separately
- XCT Technology for major, minor, fine, and very fine motion detection
- 180° sensor field-of-view
- Tamper-resistant PIR lens
- Up to 900 ft2 (81 m2) major motion coverage and 400 ft2 (36 m2) minor motion coverage
- Two Ambient Light Detect (ALD) options:
- Learning ALD Mode:
- Uses adaptive algorithm. Sensor learns user’s preferred light level over time.
- Fixed ALD mode: Four selectable light level thresholds: Hi, Med, Low, Min
- Adjustable timeout for each circuit (1, 5, 15, or 30 minutes)
- Sensitivity adjustment
- PIR (Hi, Med, Low, Min)
- Ultrasonic (Hi, Med, Low, Off)
- Occupancy models (MS-A102-XX, MS-B102-XX, MS-A202-XX, MS-B202-XX) can be set to Auto-ON / Auto-OFF or Manual-ON / Auto-OFF per circuit.
|
Model#
|
MS-A102 |
| Sensor Type | Occupancy Sensor Switch |
| Number of Circuit |
1 |
| Neutral Wire Required |
No |
| Operation |
Single Pole |
| Voltage / Load Type / Maximum Load |
120 - 277 V~ Lighting 6 A (incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent)
120 V~ Fan 4.4 A (1/6 HP) |
downloads
Download PDF specification Share your knowledge of this product. Be the first to write a review »
