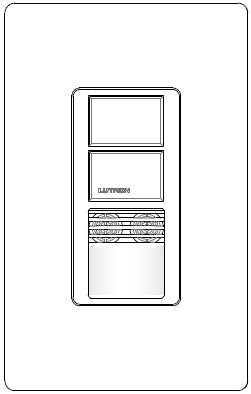

Lutron MS-B202-MS Maestro Dual Technology ultrasonic and Passive infrared Occupancy sensor for Dual Circuit in Mocha Stone

Lutron MS-B202-MS Maestro Dual Technology ultrasonic and Passive infrared Occupancy sensor for Dual Circuit in Mocha Stone

Price: $145.50
Price: $145.50

MODEL: Lutron-MS-B202-MS

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

Features & Benefits
  • Matching Wallplate Sold Separately
  • Neutral wire required
  • XCT Technology for major, minor, fine, and very fine motion detection
  • Occupancy models (MS-A102-XX, MS-B102-XX, MS-A202-XX, MS-B202-XX) can be set to Auto-ON / Auto-OFF or Manual-ON / Auto-OFF per circuit
  • 180° sensor field-of-view
  • Tamper-resistant PIR lens
  • Up to 900 ft2 (81 m2) major motion coverage and 400 ft2 (36 m2) minor motion coverage
  • Two Ambient Light Detect (ALD) options:
    • Learning ALD Mode:
    • Uses adaptive algorithm. Sensor learns user’s preferred light level over time.
    • Fixed ALD mode: Four selectable light level thresholds: Hi, Med, Low, Min
  • Adjustable timeout for each circuit (1, 5, 15, or 30 minutes)
  • Sensitivity adjustment
    • PIR (Hi, Med, Low, Min)
    • Ultrasonic (Hi, Med, Low, Off)
  • The dual-circuit versions (MS-A202, MS-B202) can be used to meet many of the Title 20/24, ASHRAE 90.1, and IECC code requirements such as “automatic shutoff” and “multi-level lighting control”.
Model#
MS-B202
Sensor Type Occupancy Sensor Switch
Number of Circuit 2
Neutral Wire Required Yes
Operation 3-Way with Mechanical Switch
Voltage / Load Type / Maximum Load 120 - 277 V~ Lighting 6 A (incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent)
120 V~ Fan 4.4 A (1/6 HP)
