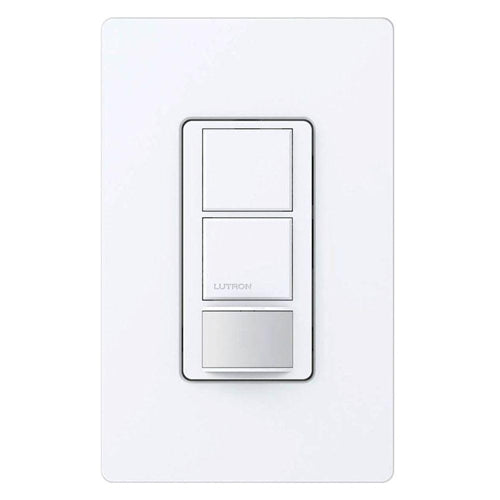

Lutron MS-OPS6-DDV-WH Maestro Dual-circuit Switch with Occupancy/Vacancy Sensor, 6A 120V-277V in White

Description

The Lutron® Maestro® Dual-Circuit Occupancy Sensing Switch combines two switches with an in-wall, passive infrared (PIR) occupancy or partial-on sensor. The sensor is intended for either:

• Control of two circuits
• Bi-level control of two circuits, as required by certain energy codes (e.g., ASHRAE)

Features & Benefits

• Matching Wallplate Sold Separately
• Passive infrared sensor with exclusive Lutron® XCTTM Technology for minor motion detection
• 180° sensor field-of-view
• Tamper-resistant PIR lens
• Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2(36 m2)] minor motion coverage
• Smart Ambient Light Detection (ALD) mode uses adaptive algorithm: Sensor learns the user’s preferred light level over time.
• Occupancy version can be set to Auto-ON / Auto-OFF or Manual-ON / Auto-OFF
• Meets Title 24 / Title 20 requirements for multi-level lighting. Partial-ON only (PPS6-DDV) version available to meet Title 24 / Title 20 requirements for Partial-ON sensors.
• Adjustable timeout for each circuit (1, 5, 15, or 30 minutes)
• Sensitivity adjustment (High/Low)
• Switches all lighting loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent.
• Switches fan loads at 120 V~.
• Single-pole only.
