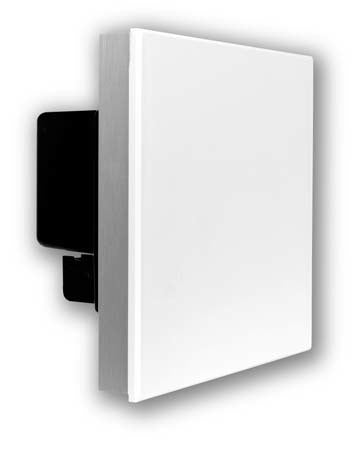

Lutron NGRX-PB-WH Grafik Eye Power Booster

Name: Lutron NGRX-PB-WH Grafik Eye Power Booster
Brand: Lutron
SKU: Lutron-NGRX-PB-WH
Price: 197.51 USD
Availability: InStock

Price: $197.51

MODEL: Lutron-NGRX-PB-WH

Usually Ships in 3-5 business days. Urgent Project? contact us >>

Ordering a large quantity? Request a quote

description

Features and Benefits

Provides capability for a zone on a GRAFIK Eye 3000 Series Control Unit to control a larger load. Allows the zone to dim or switch a fully-loaded circuit of lighting.
Dims or switches most popular lighting sources and load types.
Models available for 120 V , 220-240 V (non-CE), 230 V (CE), or 100 V input power.

Works with:

Models and Capacities

Model #	GRX-FDBI-16A-120
Type	Fluorescent Dimming Ballast Interface
Input power	120 V , 220-240 V (non-CE), 230 V (CE), or 100 V . All voltages 50/60 Hz, phase-to-neutral.
Load (output) power	Phase independent of Control Unit.
Sources/Load Types	Operates these sources with a smooth continuous Square Law dimming curve or on a full conduction non-dim basis: Incandescent (Tungsten) Halogen Magnetic Low-Voltage Transformer1 Lutron Tu-WireTM Electronic Fluorescent Dimming Ballast Neon/Cold Cathode
Terminals	Accept up to two #12 AWG (2.5 mm2).
Mounting	Surface or recess mount indoors only.
Dimensions And Mounting	Recess or surface mount in 2-gang U.S. wallbox 3.5 in. (89 mm) deep. Indoors only. Power Booster generates heat; mount only where ambient temperature is 32 °F-104 °F (0 °C-40 °C). Mount with arrows facing up to ensure adequate cooling. Allow 4.5 in. (114 mm) above and below unit and between faceplates when mounting several in a vertical layout. For better heat dissipation, surface mount without faceplate. Mount so line (mains) voltage wiring is at least 6 feet (1.8 m) from sound or electronic equipment and wiring. Mount Interface within 7° of true vertical.
