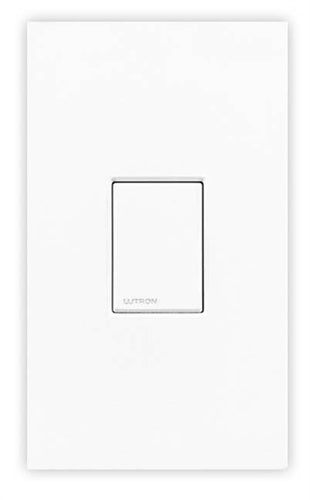

Lutron NTGRX-1S-GR Grafik Eye Vareo Style Wallstation in Gray

Description

GRAFIK Eye 3000 provides an energy saving solution for both new construction and renovation projects. By controlling the light in multiple settings with numerous preset scenes, GRAFIK Eye 3000 can create dramatic environments while drastically reducing energy expenses.
GRAFIK Eye 4000 system can control the lighting in a variety of environments such as conference rooms, auditoriums, and retail spaces. In addition, the system can store numerous lighting presets and alternate between them with the touch of a button.

Features & Benefits

• Ideal for large projects that use the maximum number of Wallstations and/or Control Interfaces but still require additional control points.
• Provides line-voltage three-way control for retrofit applications.
• Wires to GRAFIK Eye 3000 Series Control Units using 120 VAC line voltage wiring.
• Wires to GRAFIK Eye 4000 Series Control Units using Class 2 (PELV) wiring.
• Does not require an address.
• Toggles the connected GRAFIK Eye Control Unit between Scene 1 and Off.
• Operates one GRAFIK Eye 3000 or 4000 Series Control Unit.
• Up to ten NTGRX-1S Entrance Controls may be wired in parallel to a single Control Unit.
• Not for use with 2-zone Control Units.


Model #	NTGRX-1S-GR
Color	Gray
Type	Entrance Control
Operating voltage	12 to 40 VDC and 100 to 127 VAC.
