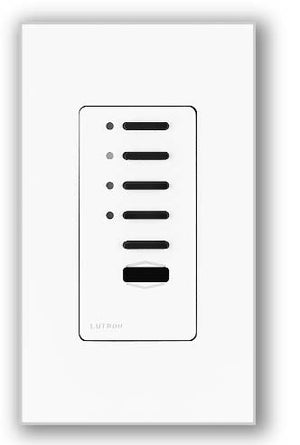

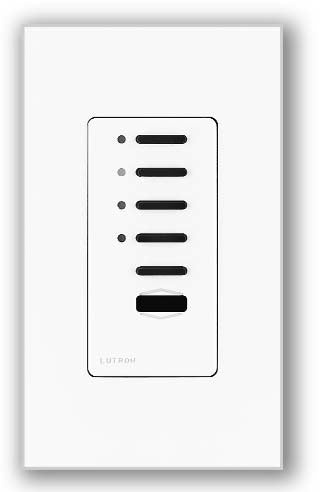

Lutron NTGRX-4S-IR-WH Grafik Eye Architectural 4-Scene with Off and IR Receiver Wallstation in White

Description

GRAFIK Eye 3000 provides an energy saving solution for both new construction and renovation projects. By controlling the light in multiple settings with numerous preset scenes, GRAFIK Eye 3000 can create dramatic environments while drastically reducing energy expenses.
GRAFIK Eye 4000 system can control the lighting in a variety of environments such as conference rooms, auditoriums, and retail spaces. In addition, the system can store numerous lighting presets and alternate between them with the touch of a button.

Features & Benefits

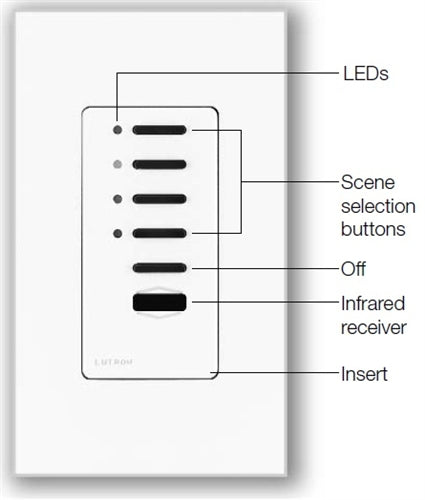

• Lets occupants select scenes at the Wallstation or by Wireless Remote Control.
• Scene selection buttons activate scenes 1 to 4, 5 to 8, 9 to 12, or 13 to 16 depending on how you set DIP switches 5 and 6.
• Status LEDs show which scene is selected.
• Off button turns lights off.
• Infrared receiver lets a GRX-IT 4-Scene Wireless Remote Control select scenes 1 to 4, 5 to 8, 9 to 12, or 13 to 16. The GRX-8IT 8-Scene Wireless Remote Control can select scenes 1 to 8, 5 to 12, 9 to 16, or 13 to 16/1 to 4.
• Raise/lower on GRX-IT and GRX-8IT Wireless Remote Controls can brighten or dim the selected scene.
• The Master Control can work with a total of eight GRX-3000 or GRX-4000 Control Units. You can assign these Control Units to buttons in any combination.

Model #	NTGRX-4S-IR-WH
Color	White
Type	Infrared Receiver/ 4-Scene Selection Control
Operating voltage	Low-voltage type Class 2(PELV), 12VDC to 24VFW.
