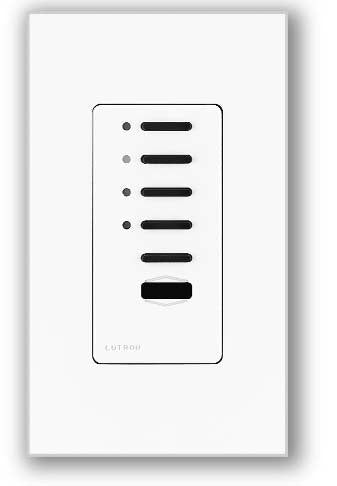

Lutron NTGRX-4S-IV Grafik Eye Architectural 4-Scene with Off and Raise/Lower Wallstation in Ivory

Description

GRAFIK Eye 3000 provides an energy saving solution for both new construction and renovation projects. By controlling the light in multiple settings with numerous preset scenes, GRAFIK Eye 3000 can create dramatic environments while drastically reducing energy expenses.
GRAFIK Eye 4000 system can control the lighting in a variety of environments such as conference rooms, auditoriums, and retail spaces. In addition, the system can store numerous lighting presets and alternate between them with the touch of a button.

Features & Benefits

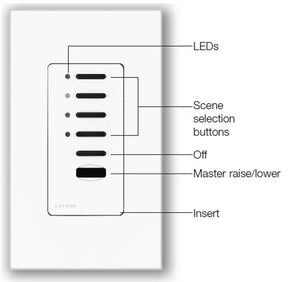

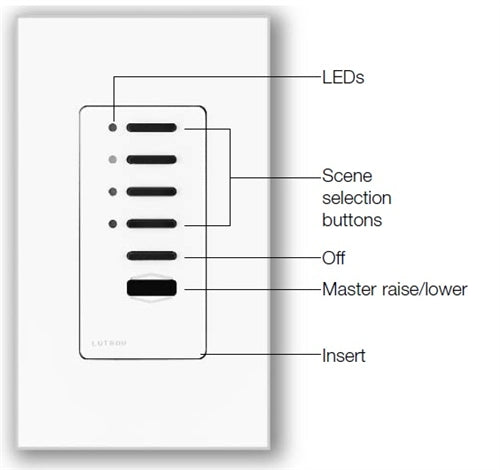

• Used to select and adjust scenes in GRAFIK Eye Control Units.
• Scene selection buttons activate scenes 1 to 4, 5 to 8, 9 to 12, or 13 to 16 depending on how you set DIP switches 5 and 6.
• Status LEDs show which scene is selected.
• Off button turns all lights off.
• Master raise/lower brightens or dims all lighting in the selected scene.
• Works with GRX-3000 and GRX-4000 Control Units. Can be set up to select scenes in just one Control Unit or a group of up to eight Control Units

Model #	NTGRX-4S-IV
Color	Ivory
Type	Scene Selection Control
Operating voltage	Low-voltage type Class 2(PELV), 12VDC to 24VFW.
