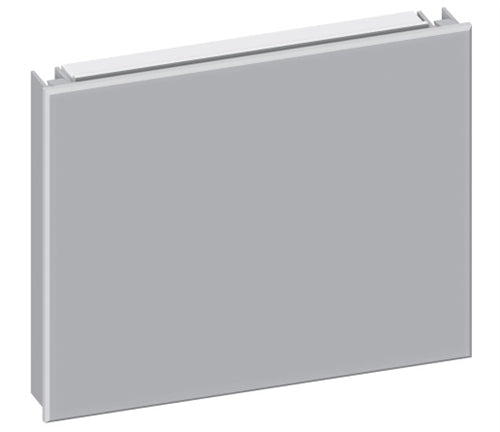

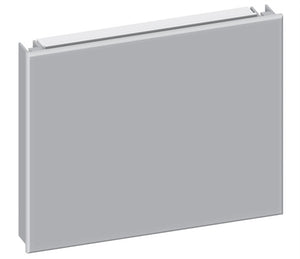

Lutron PHPM-3F-120-WH 3-Wire Fluorescent Power Module, 16A 120V

Lutron PHPM-3F-120-WH 3-Wire Fluorescent Power Module, 16A 120V

Price: $204.95
Price: $204.95

MODEL: Lutron-PHPM-3F-120-WH

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

Features and Benefits

  • Provides capability for a zone on a GRAFIK Eye control unit (or other product) to dim fluorescent lights that have Lutron Hi-lume and Eco-10 (Eco Series) line-voltage control electronic dimming ballasts.
  • Utilizes Softswitch arcless switching technology.
  • Up to 3 power modules may be wired on a single GRAFIK Eye zone.
  • Models available for 120 V~ control power.
  • Models available for 120 V~ or 120 - 277 V~ load power.
Works with 120 V~ versions of:
  • Lutron 3-wire fluorescent dimmers (consult Lutron for Vierti); see approved list in the dimmers & switches specification guide at www.lutron.com
  • GRAFIK Eye QS control units
  • GRAFIK Eye 3000 Series control units
  • LP, LCP, and GP dimming panels
  • HomeWorks and HomeWorks QS remote power panels

Model # PHPM-3F-120-WH
Type 3-Wire Fluorescent Power Module
Control Power
 120 V~
Load Power
 120 V~
Capacity
 16 A, 1920 W
Frequency
 50 / 60 Hz, phase-to-neutral
Load (output) power:
 Phase independent of control device/control voltage.
Sources/Load Types
 Operates Lutron Hi-lume, Eco-10 (Eco Series), Compact SE, EcoSystem, and
EcoSystem Compact line-voltage control electronic dimming ballasts with a smooth
continuous Square Law dimming curve.
Key Design Features
  • Patented RTISST circuitry compensates in real time for incoming line voltage variations: Compensates for +/-2% change in RMS voltage/cycle and +/-2% Hz change in frequency/second.
  • Provides air-gap off.
  • Module protects itself during temporary over-current conditions on dimmed output.
  • Two LEDs on front of unit provide diagnostic information (visible when faceplate is removed).
