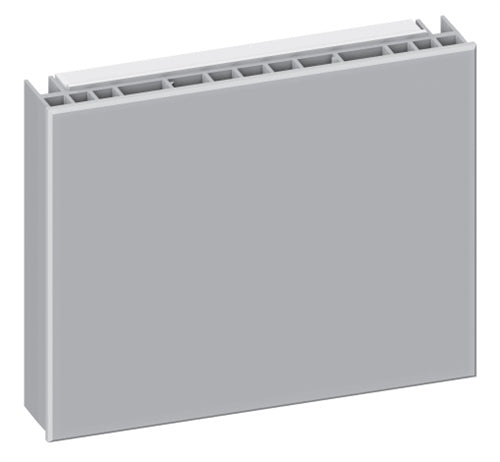

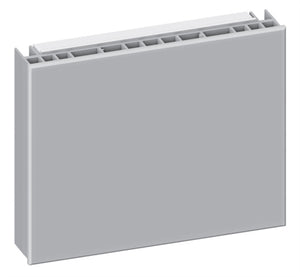

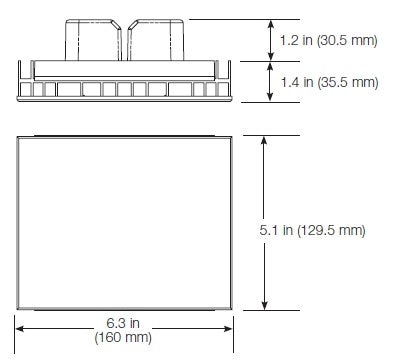

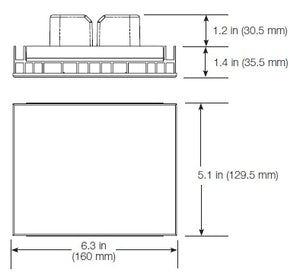

Lutron PHPM-PA-DV-WH Phase Adaptive Power Module, 16A Dual Voltage 120-277V

Features and Benefits

• Provides capability for a zone on a GRAFIK Eye control unit (or other product) to dim a fully loaded circuit of lighting.
• May be used to control incandescent, electronic low-voltage, magnetic low-voltage, and neon/ cold cathode lighting sources, as well as Lutron Tu-Wire fluorescent dimming ballasts.
• Automatically selects leading-edge or trailing-edge dimming for low-voltage transformers.
• Provides power and dimming for one zone.
• Up to 3 power modules may be wired on a single GRAFIK Eye zone.
• Models available for 120 V~ control power.
• Not for use with non-dim loads.


Works with 120 V versions of:

• GRAFIK EyeR QS control units*
• GRAFIK EyeR 3000 Series control units**
• LP, LCP, and GP dimming panels**
• HomeWorks and HomeWorks QS remote power panels**
• Lutron 3-wire fluorescent dimmers (consult Lutron for Vierti); see approved list in the dimmers & switches specification guide at www.lutron.com
  *Set to power module load type
  **Set to incandescent load type


Sources/ Load Types

• Operates these sources with a smooth continuous Square Law dimming curve:

  • Incandescent (tungsten)
  • Halogen
  • Magnetic low-voltage transformer (iron core)
  • Electronic (solid-state) low-voltage transformer (must be manufacturer approved for reverse-phase control dimming)
  • Neon/Cold cathode
  • LutronR Tu-Wire fluorescent dimming ballasts
• Incandescent and electronic low-voltage sources may be controlled on the same circuit/control zone. Up to 30% of the unit’s capacity may be used for incandescent lighting.
• Incandescent and magnetic low-voltage sources may NOT be controlled on the same circuit/control zone.
• PHPM-PA not for use with non-dim loads. Use switching power module (PHPM-SW-DV-WH) for
  non-dim loads.
• Minimum load on power module is 10 W.
• Output must be directly connected to the load. Load side switching is not recommended.
