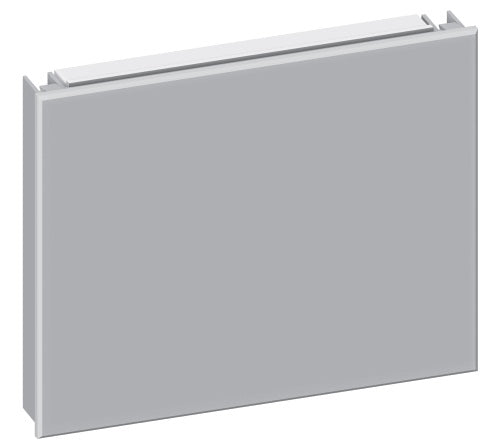

Lutron PHPM-SW-DV-WH Switching Power Module, 16A Dual Voltage 120-277V

Lutron PHPM-SW-DV-WH Switching Power Module, 16A Dual Voltage 120-277V

Price: $192.53
Price: $192.53

MODEL: Lutron-PHPM-SW-DV-WH

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

Features and Benefits

  • Provides capability for a zone on a GRAFIK Eye control unit (or other product) to switch a fully loaded circuit of lighting.
  • May be used to switch incandescent, electronic low-voltage, magnetic low-voltage, HID, fluorescent ballasts, and neon/cold cathode lighting sources.
  • Utilizes Softswitch® arcless switching technology.
  • Provides power and switching for one zone.
  • Up to 3 power modules may be wired on a single GRAFIK Eye zone.
  • Model available for 120 V control power.
  • Model available for 120 - 277 V load power.

Works with 120 V versions of:

  • Lutron® 3-wire fluorescent dimmers (consult Lutron for Vierti®); see approved list in the dimmers & switches specification guide at www.lutron.com
  • GRAFIK Eye QS control units
  • GRAFIK Eye 3000 Series control units
  • LP, LCP, and GP dimming panels
  • HomeWorks® remote power panels

Model # PHPM-SW-DV-WH
Type Power Modules
Control Power
 120 V~
Load Power
 120 - 277 V ~
Frequency
 50 / 60 Hz, phase-to-neutral
Load (output) power:
 Phase independent of control device/control voltage.
Sources/Load Types
  • Switches the following load types:
    – Incandescent (tungsten)
    – Halogen
    – Magnetic low-voltage transformer (iron core)
    – Electronic (solid-state) low-voltage transformer.
    – Magnetic and electronic fluorescent dimming ballasts
    – Neon/cold-cathode
    – HID
  • Motors:
    – 1/2 HP at 277 V
    – 1/3 HP at 120 V
  • May be used with GFI/AFI breaker protected loads.
Key Design Features
  • Patented Softswitch® technology.
  • Two LEDs on front of unit provide diagnostic information (visible when faceplate is removed).
Terminals
 Each terminal accepts up to two 12 AWG (2.5 mm2) wires.
Mounting
  • Surface or recess mount.
  • Power module is UL tested and approved for use in spaces designed for environmental air handling.
