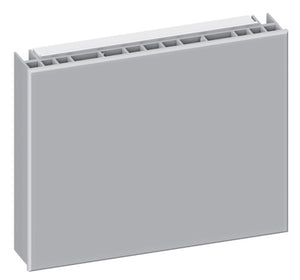

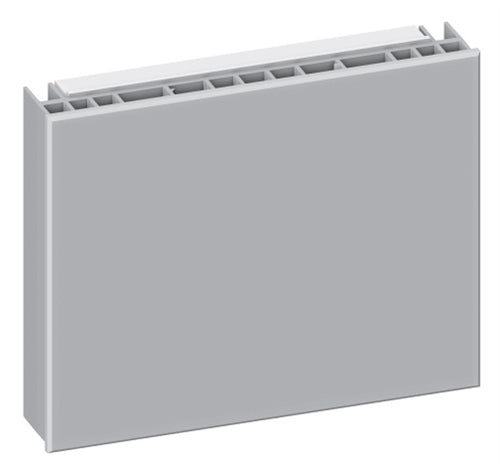

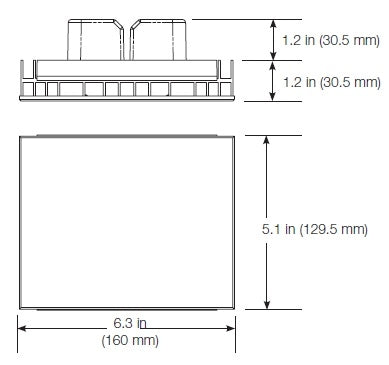

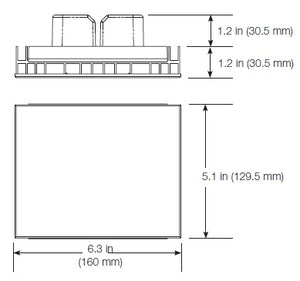

Lutron PHPM-WBX-120-WH Phase Adaptive Power Module with 3-Wire Fluorescent Input, 16A 120V only

Features and Benefits

• When connected to a 20 A circuit breaker, provides capacity on a 3-wire fluorescent dimmer for a full 16 A load of lighting.
• May be used to dim incandescent, halogen, electronic low-voltage, magnetic low-voltage, neon/cold cathode, or Lutron® Tu-Wire® lighting sources.
• Phase-adaptive technology automatically selects leading-edge or trailing-edge dimming for low-voltage transformers.
• Up to 3 power modules may be controlled by a single dimmer.
• Models require 120 V control voltage.
• Compatible with 220/240 V non-CE systems (requires 120 V control input). Contact Lutron for specific system applications.
• Not for use with non-dim loads.

Works with 120 V versions of:

• Lutron 3-wire fluorescent dimmers (consult Lutron for Vierti_®); see approved list in the dimmers & switches specification guide at www.lutron.com
• GRAFIK Eye QS control units*
• GRAFIK Eye 3000 Series control units**
• LP, LCP, and GP dimming panels**
• HomeWorks_® remote power panels**
• EcoSystem_® interface C5-BMJ-xxx
  *Set to fluorescent module load type
  **Set to 3-wire fluorescent load type

Sources/ Load Types

• Operates these sources with a smooth continuous Square Law dimming curve:

  • Incandescent (tungsten)
  • Halogen
  • Magnetic low-voltage transformer (iron core)
  • Electronic (solid-state) low-voltage transformer (must be manufacturer approved for reverse-phase control dimming).
  • Neon/Cold cathode
  • Lutron® Tu-Wire® fluorescent dimming ballasts
• Incandescent and electronic low-voltage sources may be controlled on the same circuit/control zone. Up to 30% of the unit’s capacity may be used for incandescent lighting.
• Incandescent and magnetic low-voltage sources may be controlled on the same circuit/control zone. Up to 30% of the unit’s capacity may be used for incandescent lighting.
• Electronic low-voltage and magnetic low-voltage sources may NOT be controlled on the same circuit/control zone.
• PHPM-WBX not for use with non-dim loads. Use switching power module (PHPM-SW-DV-WH) for non-dim loads.
• Minimum load on power module is 10 W.
• Output must be directly connected to the load. Load side switching is not recommended.
