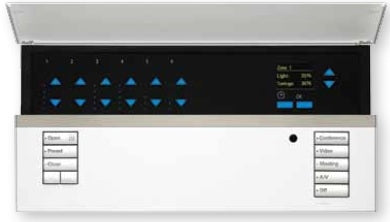

Lutron QSGRJ-4P-1TWH Grafik Eye QS Wireless Main Unit, RF Frequency, 1 Shade Column, 4 Lighting Zones, 120V in White Base and Transluscent Black Cover

Grafik Eye QS Features & Benefits

• Eliminates the need to run communication wiring to shades, sensors and additional GRAFIK Eye QS units
• Available in 3-, 4-, and 6-zone configurations
• Integral phase control dimmers provide control of incandescent/halogen, magnetic low-voltage, Lutron Tu-Wire® fluorescent dimming ballasts, and non-dimmed lighting loads
• The GRAFIK Eye QS can be configured for wired (QS link) or wireless (RF link) communication.


Applications

• Conference Room
• Hotel Ballroom
• Classroom
• Home Theater
• Other applications: Restaurants, Lecture halls, Retail floor spaces, and Worship spaces

Key Features

STEPS TO FOLLOW WHEN DESIGNING YOUR SYSTEM

STEP 1: selecting a GRAFIK Eye QS unit
A. Identify the number of lighting and shading zones in the space
B. Identify the load types in the space

Zones A zone is a single light, shade, or grouping of lights or shades traditionally controlled by one switch or dimmer. GRAFIK Eye® QS allows you to design each scene by adjusting the lights and shades in a series of zones.

C. Build a STANDARD GRAFIK Eye QS model number
Standard GRAFIK Eye QS models come with a base unit with wireless capability and an unengraved white faceplate with either 0 or 1 shade zones.




D. Build a NON-STANDARD GRAFIK Eye QS model number


STEP 2: selecting seeTouch QS keypads
A. Select keypad style and button configurations
B. Build a seeTouch QS keypad model number

STEP 3: selecting shading components
A. Select power components for Sivoia® QS WIRELESS system
A. Select power components for Sivoia QS WIRED system
B. Select appropriate window treatments

STEP 4: selecting energy-saving devices
A. Select appropriate occupancy/vacancy sensors
B. Select daylight sensors

STEP 5: selecting integration devices
A. Determine the type of integration needed

Style	GRAFIK EYE QS Main Unit without Faceplate
Model #	QSGRJ-4P-1TWH
Number of Zones	4
Unit Type	Phase Control Triac
Number of Shade Zones	1
Top Door Color	Translucent
Base Finish	White
Input Power	120-127 V ~ 50/60 Hz
Typical Power Consumption	7 W, 0 Power Draw Units (PDUs). The GRAFIK Eye QS is not powered from the link, Pin 2 should not be connected. Typical Power Consumption test conditions: all loads off, one button LED on.
Regulatory Approvals	UL, CSA, FCC, IC, SCT, NOM, CEC (Title 24)
Environment	Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C) Ambient operating humidity: 0-90% humidity, non-condensing. Indoor use only.
Communications	Low-voltage type IEC PELV / NECR Class 2 wiring connects GRAFIK EyeR QS to processor. Each HomeWorksR QS processor has two configurable links. GRAFIK EyeR QS communicates with the processor via the QS link or RF link.
ESD Protection	Tested to withstand electrostatic discharge without damage or memory loss, in accordance with IEC 801-2.
Surge Protection	Tested to withstand surge voltages without damage or loss of operation, in accordance with IEEE C62.41-1991 Recommended Practice on Surge Voltages in Low-Voltage AC Power Circuits.
Power Failure	Provides 10-year power failure memory: Automatically restores lighting to levels prior to power interruption.

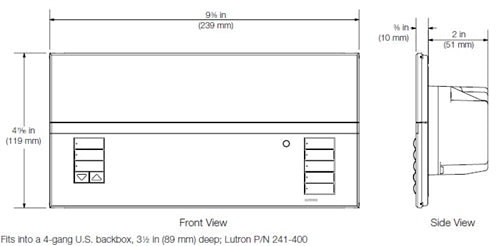

Mounting	Installs in a standard 4-gang U.S. wallbox, 3` in (89 mm) deep is strongly recommended. Always allow at least 4` in (114 mm) clearance above and below the control unit to provide adequate space for cooling. Wallplate snaps on with no visible means of attachment.
Line Voltage Wiring	Each line voltage terminal can accept one 12 AWG (4.0 mm2) wire.
IEC PELV/NEC® Class 2 QS System Low-Voltage Wiring	System communication uses low-voltage wiring. Wiring can be daisy-chained or T-tapped. Wiring must be run separately from line/mains voltage. IEC PELV/NEC® Class 2 wiring link requires: Two 18 AWG (0.75 mm2) conductors for control power. One twisted, shielded pair of 22 AWG (0.34 mm2) for data link. Available from Lutron, P/N GRX-CBL-346S; check compatibility in your area. Total length of control link must not exceed 2000 ft (610 m).
Warranty	8 Year Limited Warranty.
