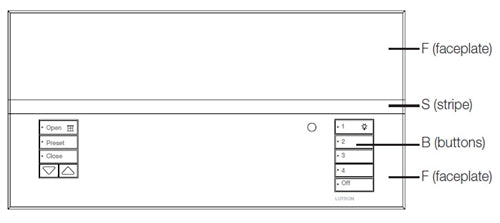

Lutron QSGS-BE Grafik Eye QS Custom Stripe Kit for Faceplate, in Beige

• Eliminates the need to run communication wiring to shades, sensors and additional GRAFIK Eye QS units
• Available in 3-, 4-, and 6-zone configurations
• Integral phase control dimmers provide control of incandescent/halogen, magnetic low-voltage, Lutron Tu-Wire® fluorescent dimming ballasts, and non-dimmed lighting loads
• The GRAFIK Eye QS can be configured for wired (QS link) or wireless (RF link) communication.

Applications

• Conference Room
• Hotel Ballroom
• Classroom
• Home Theater
• Other applications: Restaurants, Lecture halls, Retail floor spaces, and Worship spaces

QS Key Features

STEPS TO FOLLOW WHEN DESIGNING YOUR SYSTEM

STEP 1: selecting a GRAFIK Eye QS unit
A. Identify the number of lighting and shading zones in the space
B. Identify the load types in the space

Zones A zone is a single light, shade, or grouping of lights or shades traditionally controlled by one switch or dimmer. GRAFIK Eye® QS allows you to design each scene by adjusting the lights and shades in a series of zones.

C. Build a STANDARD GRAFIK Eye QS model number
Standard GRAFIK Eye QS models come with a base unit with wireless capability and an unengraved white faceplate with either 0 or 1 shade zones.




D. Build a NON-STANDARD GRAFIK Eye QS model number

STEP 2: selecting seeTouch QS keypads
A. Select keypad style and button configurations
B. Build a seeTouch QS keypad model number

STEP 3: selecting shading components
A. Select power components for Sivoia® QS WIRELESS system
A. Select power components for Sivoia QS WIRED system
B. Select appropriate window treatments

STEP 4: selecting energy-saving devices
A. Select appropriate occupancy/vacancy sensors
B. Select daylight sensors

STEP 5: selecting integration devices
A. Determine the type of integration needed

Style	GRAFIK EYE QS Custom Stripe Kit
Model #	QSGS-BE
Unit Color/Finish	Beige
