Lutron QSWE-2BN-SC seeTouch QS Wallstation 2-Button Wallstation for Grafik Eye QS System, Non Insert Style in Satin Chrome Unengraved

Lutron QSWE-2BN-SC seeTouch QS Wallstation 2-Button Wallstation for Grafik Eye QS System, Non Insert Style in Satin Chrome Unengraved

Price: $256.96
Price: $256.96

MODEL: Lutron-QSWE-2BN-SC

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

Features & Benefits

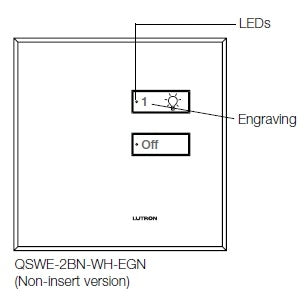

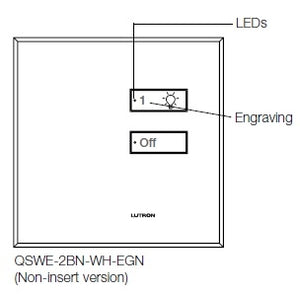

  • Often used in entryways to select Scene 1 and Off.
  • Large, rounded buttons are easy to use.
  • Backlit buttons with optional engraving make it easy to find and operate the Wallstation in low light conditions.
  • Optional button engraving is angled up to the eye for easy reading.
  • Options for programming buttons after installation (choose one):
    - Recalls preset light levels for two scenes: 1 and Off, 5 and Off, 9 and Off, 13 and Off, 1 and 2, 5 and 6, 9 and 10, 13 and 14.
    - Each button will toggle a zone or a group of zones.
    - LEDs reflect door status of one partition.
    - Starts or stops one sequence (Scenes 1-4 or 5-16 sequence).
    - Disables keypads and makes lights go to Scene 16.
    - Allows fine-tuning of a group of zones.
  • Receives up to two contact closure inputs via a connector on the back of the Wallstation.
  • Contact closure features:
    - When keypad is programmed as scene, panic, zone toggle or sequence, input 1 closure will perform the top button action, and input 2 closure will perform the bottom button action.
    - When keypad is programmed as a partition control, input 1 and input 2 closures will open the partition, and input 1 and input 2 openings will close the partition.
    - When keypad is programmed to fine-tune, input 1 controls raising (closure = start; opening = stop) and input 2 controls lowering (closure = start; opening = stop).




Model # QSWE-2BN-SC
Type seeTouch QS Wallstation 2-Button Wallstation for Grafik Eye QS System
Engraving Unengraved
Style
 Non-Insert
Finish
   Satin Chrome
Dimensions and mounting
  • Product dimensions:
    Width: 3.38 in (86 mm)
    Height: 3.38 in (86 mm)
    Depth: 1.06 in (27 mm); Profile: 0.31 in (8 mm)
  • Typical backbox dimensions:
    Width: 3.00 in (75 mm)
    Height: 3.00 in (75 mm)
    Depth: 1.40 in (35.6 mm)
  • May be mounted in a 1.40 in round backbox, used in Europe
Communication and wiring
  • Operates via low-voltage IEC PELV/NEC Class 2 standard wired communication on the QS link
  • A QS system can have up to 100 QS devices; each international seeTouch QS keypad counts as one device towards the limit
  • Uses one power draw unit on the QS link
