Lutron QSWE-3BN-SC seeTouch QS Wallstation 3-Button Wallstation for Grafik Eye QS System, Non Insert Style in Satin Chrome Unengraved

Lutron QSWE-3BN-SC seeTouch QS Wallstation 3-Button Wallstation for Grafik Eye QS System, Non Insert Style in Satin Chrome Unengraved

Price: $256.96
Price: $256.96

MODEL: Lutron-QSWE-3BN-SC

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

Features & Benefits
  • Often used to select scenes.
  • Large, rounded buttons are easy to use.

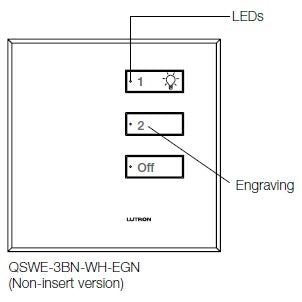

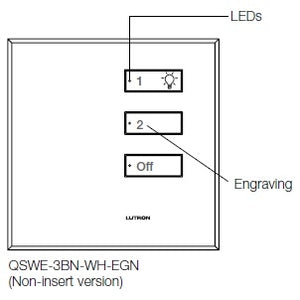

  • Backlit buttons with optional engraving make it easy to find and operate the Wallstation in low light conditions.
  • Optional button engraving is angled up to the eye for easy reading.
  • Options for programming buttons after installation (choose one):
    - Recalls preset light levels for scenes (1-3, 5-7, 9-11, 13-15; or 1, 2, and Off; 5, 6, and Off; 9, 10, and Off, 13, 14, and Off).
    - Each button will toggle a zone or a group of zones.
    - LEDs reflect door status of three partitions.
  • Receives up to two contact closure inputs via a connector on the back of the Wallstation.
  • Contact closure features:
    - When keypad is programmed as scene or zone toggle, input 1 closure will perform the top button action, and input 2 closure will perform the bottom button action.
    - When keypad is programmed as a partition control, input 1 controls the partition programmed to the top button (closure = open partition; opening = close partition) and input 2 controls the partition programmed to the bottom button (closure = close partition; opening = open partition).




Model # QSWE-3BN-SC
Type seeTouch QS Wallstation 3-Button Wallstation for Grafik Eye QS System
Engraving Unengraved
Style
 Non-Insert
Finish
   Satin Chrome
Dimensions and mounting
  • Product dimensions:
    Width: 3.38 in (86 mm)
    Height: 3.38 in (86 mm)
    Depth: 1.06 in (27 mm); Profile: 0.31 in (8 mm)
  • Typical backbox dimensions:
    Width: 3.00 in (75 mm)
    Height: 3.00 in (75 mm)
    Depth: 1.40 in (35.6 mm)
  • May be mounted in a 1.40 in round backbox, used in Europe
Communication and wiring
  • Operates via low-voltage IEC PELV/NEC Class 2 standard wired communication on the QS link
  • A QS system can have up to 100 QS devices; each international seeTouch QS keypad counts as one device towards the limit
  • Uses one power draw unit on the QS link
