Lutron QSWE-5BRLIRN-SC seeTouch QS Wallstation 5-Button Wallstation with Infrared Receiver and Raise/Lower for Grafik Eye QS System, Non Insert Style in Satin Chrome Unengraved

Lutron QSWE-5BRLIRN-SC seeTouch QS Wallstation 5-Button Wallstation with Infrared Receiver and Raise/Lower for Grafik Eye QS System, Non Insert Style in Satin Chrome Unengraved

Price: $286.16
Price: $286.16

MODEL: Lutron-QSWE-5BRLIRN-SC

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

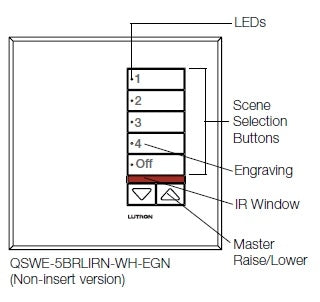

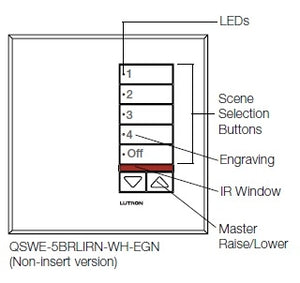

Features & Benefits
  • Often used to select and adjust scenes.
  • Large, rounded buttons are easy to use.
  • Backlit buttons with optional engraving make it easy to find and operate the Wallstation in low light
    conditions.
  • Optional button engraving is angled up to the eye for easy reading.
  • The LEDs next to each button are used during programming and provide feedback when the buttons
    are pressed.
  • Master raise/lower brightens or dims all lighting or raises/lowers all assigned shades in the last selected
    scene or toggled group.
  • Shade control features (E01 engraving):
    - Can control Sivoia® QS Window Treatments.
    - Also controls shades with wireless IR controllers SVQ-3PIT, SVQ-OCIT, SVQ-4GD-OCIT, and SVQ-4S2G-IT.
    - Pressing the Open (or Close) button once will cause the window treatments to move to their fully open (or closed) position. Tap any button (regardless of function) to stop a shade that is in motion.
    - Three (3) programmable preset buttons.
  • Receives up to two contact closure inputs via a connector on the back of the Wallstation.




Model # QSWE-5BRLIRN-SC
Type seeTouch QS 5-Button Wallstation with Infrared Receiver and Raise/Lower for Grafik Eye QS System
Engraving Unengraved
Style
 Non-Insert
Finish
   Satin Chrome
Dimensions and mounting
  • Product dimensions:
    Width: 3.38 in (86 mm)
    Height: 3.38 in (86 mm)
    Depth: 1.06 in (27 mm); Profile: 0.31 in (8 mm)
  • Typical backbox dimensions:
    Width: 3.00 in (75 mm)
    Height: 3.00 in (75 mm)
    Depth: 1.40 in (35.6 mm)
  • May be mounted in a 1.40 in round backbox, used in Europe
Communication and wiring
  • Operates via low-voltage IEC PELV/NEC Class 2 standard wired communication on the QS link
  • A QS system can have up to 100 QS devices; each international seeTouch QS keypad counts as one device towards the limit
  • Uses one power draw unit on the QS link
