Lutron QSWE-6BRLN-SC seeTouch QS Wallstation 6-Button Dual Wallstation with Raise/Lower for Grafik Eye QS System, Non Insert Style in Satin Chrome Unengraved

Lutron QSWE-6BRLN-SC seeTouch QS Wallstation 6-Button Dual Wallstation with Raise/Lower for Grafik Eye QS System, Non Insert Style in Satin Chrome Unengraved

Price: $256.96
Price: $256.96

MODEL: Lutron-QSWE-6BRLN-SC

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

Features & Benefits
  • Often used to control one or more lighting or window treatment zones simultaneously.
  • Often used to select three different groups of shades using Open, Close, and Raise/Lower.
    - Used to control multiple groups of shades independently from a single-gang keypad (e.g., a window with a sheer shade and a blackout shade).
  • Can control Sivoia® QS Window Treatments.
  • Functions as two independently programmable controllers: a 3-button (left keypad group) and a 3-button (right keypad group). Can control two lighting zones, two shade zones, or one of each. Or can function as one shade group control where the right keypad controls the group of shades indicated by the left keypad.
  • Options for programming buttons of left three-button keypad group after installation (choose one):
    - Recalls preset light levels for scenes (1, 2, and Off; 5, 6, and Off; 9, 10, and Off; 13, 14, and Off; or 1-3, 5-7, 9-11, or 13-15).
    - Each button will toggle a zone or a group of zones.
    - LEDs reflect door status of three partitions.
  • Options for programming buttons of right two-button keypad after installation (choose one):
    - Recalls preset light levels for scenes (1, 2, and Off; 5, 6, and Off; 9, 10, and Off; 13, 14, and Off; or 1-3, 5-7, 9-11, or 13-15). And raise/lower last preset activated.
    - Each button will toggle a zone or a group of zones. Raise/lowers affect last toggled zone.
    - Control a group of shades.

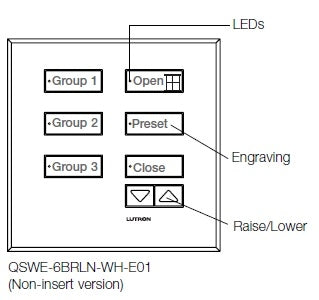

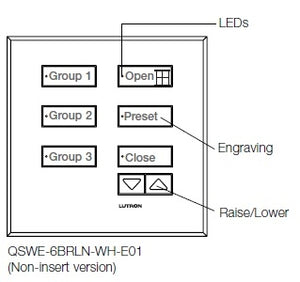

  • Large, rounded buttons are easy to use.
  • Backlit buttons with on-button engraving make it easy to find and operate the Wallstation in low light conditions.
  • Optional button engraving is angled up to the eye for easy reading.
  • Pressing the Open (or Close) button once will cause the window treatments to move to their fully open (or closed) position. Tap any button (regardless of function) to stop a shade that is in motion.
  • The LEDs next to each button are used during programming and provide feedback when the buttons are pressed.
  • Receives up to two contact closure inputs via a connector on the back of the Wallstation.
  • Contact closure features:
    - When the left keypad group is programmed as scene, zone toggle, or shade control, input 1 closure will perform the top button action, and input 2 closure will perform the bottom button action.
    - When the left keypad is programmed as a partition control, input 1 controls the partition programmed to the top button (closure = open partition; opening = close partition) and input 2 controls the partition programmed to the bottom button (closure = close partition; opening = open partition).




Model # QSWE-6BRLN-SC
Type seeTouch QS Wallstation 6-Button Dual Wallstation with Raise/Lower for Grafik Eye QS System
Engraving Unengraved
Style
 Non-Insert
Finish
   Satin Chrome
Dimensions and mounting
  • Product dimensions:
    Width: 3.38 in (86 mm)
    Height: 3.38 in (86 mm)
    Depth: 1.06 in (27 mm); Profile: 0.31 in (8 mm)
  • Typical backbox dimensions:
    Width: 3.00 in (75 mm)
    Height: 3.00 in (75 mm)
    Depth: 1.40 in (35.6 mm)
  • May be mounted in a 1.40 in round backbox, used in Europe
Communication and wiring
  • Operates via low-voltage IEC PELV/NEC Class 2 standard wired communication on the QS link
  • A QS system can have up to 100 QS devices; each international seeTouch QS keypad counts as one device towards the limit
  • Uses one power draw unit on the QS link
