Lutron QSWE-8BRLN-SC seeTouch QS Wallstation 8-Button Wallstation with Raise/Lower for Grafik Eye QS System, Non Insert Style in Satin Chrome Unengraved

Lutron QSWE-8BRLN-SC seeTouch QS Wallstation 8-Button Wallstation with Raise/Lower for Grafik Eye QS System, Non Insert Style in Satin Chrome Unengraved

Price: $256.96
Price: $256.96

MODEL: Lutron-QSWE-8BRLN-SC

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

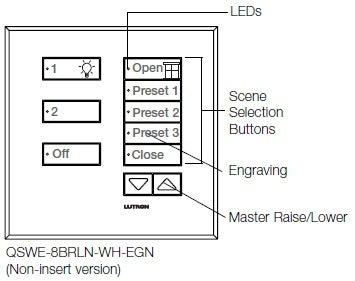

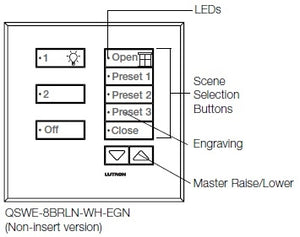

Features & Benefits
  • Often used to select and adjust scenes.
  • Large, rounded buttons are easy to use.
  • Backlit buttons with optional engraving make it easy to find and operate the Wallstation in low light conditions.
  • Optional button engraving is angled up to the eye for easy reading.
  • Master raise/lower brightens or dims all lighting or raises/lowers all assigned shades in the last selected scene or toggled group.
  • Functions as two independently programmable controllers: a 3-button (left keypad group) and a 5-button (right keypad group). Can control two lighting zones, two shade zones, or one of each. Or can function as one shade group control where the right keypad controls the group of shades indicated by the left keypad.
  • Options for programming the right column of buttons after installation (choose one):
    - Recalls preset light levels for scenes (1-4 and Off, 5-8 and Off, 9-12 and Off, 13-16 and Off; or 1-5, or 5-9, or 9-13).
    - Each button will toggle a zone or a group of zones.
    - LEDs reflect status of five partitions.
    - Can control Sivoia® QS Window Treatments.
  • Options for programming the left column of buttons after installation (choose one):
    - Recalls preset light levels for scenes (1, 2, and Off; 5, 6, and Off; 9, 10, and Off; 13, 14, and Off; or 1-3, or 5-7, or 9-11, or 13-15)
    - Each button will toggle a zone or a group of zones.
    - Used to control multiple groups of shades independently from a single-gang keypad (e.g., a window with a sheer shade and a blackout shade).
    - Can control Sivoia® QS Window Treatments.
    - Pressing the Open (or Close) button once will cause the window treatments to move to their fully open (or closed) position. Tap any button (regardless of function) to stop a shade that is in motion.
  • Receives up to two contact closure inputs via a connector on the back of the Wallstation.
  • Contact closure features:
    - When the left keypad is programmed as scene or zone toggle, or shade control, input 1 closure will perform the top button action, and input 2 closure will perform the bottom button action.
    - When left keypad is programmed as a partition control, input 1 controls the partition programmed to the top button (closure = open partition; opening = close partition) and input 2 controls the partition programmed to the bottom
    button (closure = open partition; opening = close partition).
  • Functions as two independently programmable controllers when general engraving or no engraving are ordered. Left keypad function mimics a 3-button keypad and right keypad mimics a 5-button keypad. See function details on page 5.




Model # QSWE-8BRLN-SC
Type seeTouch QS Wallstation 8-Button Wallstation with Raise/Lower for Grafik Eye QS System
Engraving Unengraved
Style
 Non-Insert
Finish
   Satin Chrome
Dimensions and mounting
  • Product dimensions:
    Width: 3.38 in (86 mm)
    Height: 3.38 in (86 mm)
    Depth: 1.06 in (27 mm); Profile: 0.31 in (8 mm)
  • Typical backbox dimensions:
    Width: 3.00 in (75 mm)
    Height: 3.00 in (75 mm)
    Depth: 1.40 in (35.6 mm)
  • May be mounted in a 1.40 in round backbox, used in Europe
Communication and wiring
  • Operates via low-voltage IEC PELV/NEC Class 2 standard wired communication on the QS link
  • A QS system can have up to 100 QS devices; each international seeTouch QS keypad counts as one device towards the limit
  • Uses one power draw unit on the QS link
