Lutron QSWS2-2RLDI-WH seeTouch QS Wallstation Dual 2-Button Wallstation with Raise/Lower for Grafik Eye QS System, Insert Style in White Unengraved

Lutron QSWS2-2RLDI-WH seeTouch QS Wallstation Dual 2-Button Wallstation with Raise/Lower for Grafik Eye QS System, Insert Style in White Unengraved

Price: $230.64
Price: $230.64

MODEL: Lutron-QSWS2-2RLDI-WH

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

Features & Benefits
  • Used to control one or more lighting or window treatment zones simultaneously.
    - Used to control multiple groups of shades independently from a single-gang keypad (e.g., a window with a sheer shade and a blackout shade).
  • Can control Sivoia QS Window Treatments.

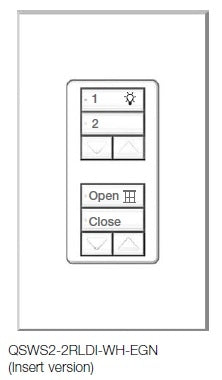

  • Functions as two independently programmable 2-button controllers. Can control two lighting zones, two shade zones, or one of each.
  • Options for programming buttons after installation (choose one for each of the keypads):
    - Recalls preset light levels for two scenes (1 and Off; 9 and 10; or 13 and 14).
    - Each button will toggle a zone or a group of zones.
    - LEDs reflect door status of one partition.
    - Enables or disables Wallstations.
    - Starts or stops one sequence (Scenes 5 through 16 sequence).
    - Disables keypads and makes lights go to Scene 16.
    - Allows fine-tuning of a group of zones.
  • Receives up to two contact closure inputs via a connector on the back of the Wallstation.
  • Contact closure features:
    - When keypad is programmed as scene or zone toggle, input 1 closure will perform the top button action of the top
    keypad group, and input 2 closure will perform the bottom button action of the top keypad group.
    - When keypad is programmed as a partition control, input 1 controls the partition programmed to the top button of the top keypad group (closure = close partition; opening = open partition) and input 2 controls the partition programmed to the bottom button of the top keypad group (closure = close partition; opening = open partition).
  • Large, rounded buttons are easy to use.
  • Backlit buttons with on-button engraving make it easy to find and operate the Wallstation in low light conditions.
  • Optional button engraving is angled up to the eye for easy reading.
  • Pressing the Open (or Close) button once will cause the window treatments to move to their fully open (or closed)
    position. Tap any button (regardless of function) to stop a shade that is in motion.
  • The LEDs next to each button are used during programming and provide feedback when the buttons are pressed.


STEPS TO FOLLOW WHEN DESIGNING YOUR SYSTEM

STEP 1: selecting a GRAFIK Eye QS unit
A. Identify the number of lighting and shading zones in the space
B. Identify the load types in the space
C. Build a STANDARD GRAFIK Eye QS model number
D. Build a NON-STANDARD GRAFIK Eye QS model number

STEP 2: selecting seeTouch QS keypads
A. Select keypad style and button configurations



B. Build a seeTouch QS keypad model number



STEP 3: selecting shading components
A. Select power components for Sivoia® QS WIRELESS system
A. Select power components for Sivoia QS WIRED system
B. Select appropriate window treatments

STEP 4: selecting energy-saving devices
A. Select appropriate occupancy/vacancy sensors
B. Select daylight sensors

STEP 5: selecting integration devices
A. Determine the type of integration needed

Model # QSWS2-2RLDI-WH
Type seeTouch QS Dual 2-Button Wallstation with Raise/Lower for Grafik Eye QS System
Engraving Unengraved
Style
 Insert
Finish
   White

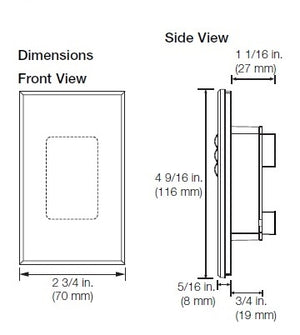

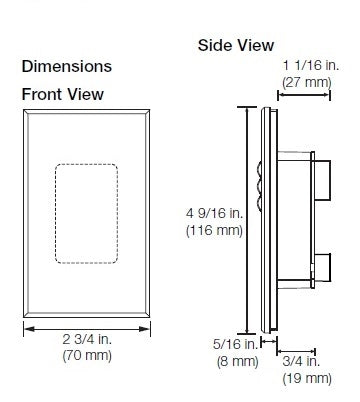

Dimensions and mounting
  • Product dimensions:
    Width: 2.75 in (70 mm)
    Height: 4.56 in (116 mm)
    Depth: 1.06 in (27 mm)
    Profile: 0.31 in (8 mm)
  • Mounts in a standard 1-gang U.S. backbox
Communication and wiring
  • Operates via low-voltage IEC PELV/NEC Class 2 standard wired communication on the QS link
  • A QS system can have up to 100 QS devices; each international seeTouch QS keypad counts as one device towards the limit
  • Uses one power draw unit on the QS link
