Lutron QSWS2-5BI-AL seeTouch QS Wallstation 5-Button Wallstation for Grafik Eye QS System, Insert Style in Almond Unengraved

Lutron QSWS2-5BI-AL seeTouch QS Wallstation 5-Button Wallstation for Grafik Eye QS System, Insert Style in Almond Unengraved

Price: $191.65
Price: $191.65

MODEL: Lutron-QSWS2-5BI-AL

Usually Ships in 3-5 business days. Urgent Project? contact us >>
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

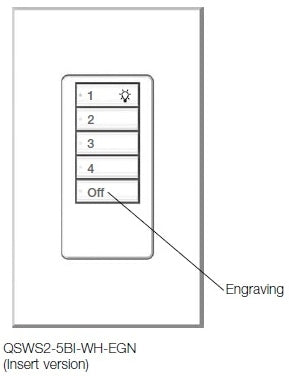

Features & Benefits
  • Used to select scenes; often to select between 4 scenes and Off.
  • Receives up to two contact closure inputs via a connector on the back of the Wallstation.
  • Contact closure features:
    - When keypad is programmed as scene or zone toggle, input 1 closure will perform the top button action, and input 2 closure will perform the bottom button action.
    - When keypad is programmed as a partition control, input 1 controls the partition programmed to the top button (closure = close partition; opening = open partition) and input 2 controls the partition programmed to the bottom button (closure = close partition; opening = open partition).
  • Large, rounded buttons are easy to use.
  • Backlit buttons with optional engraving make it easy to find and operate the Wallstation in low light conditions.
  • Optional button engraving is angled up to the eye for easy reading.
  • Options for programming buttons after installation (choose one):
    - Recalls preset light levels for scenes (1 through 4 and Off; 5 through 8 and Off; 9 through 12 and Off; or 13 through 16 and Off).
    - Each button will toggle a zone or a group of zones.
    - LEDs reflect door status of four partitions.
  • Shade control features:
    - Used to control multiple groups of shades independently from a single-gang keypad (e.g., a window with a sheer
    shade and a blackout shade).
    - Can control Sivoia QS Window Treatments.
    - Pressing the Open (or Close) button once will cause the window treatments to move to their fully open (or closed) position. Tap any button (regardless of function) to stop a shade that is in motion.


STEPS TO FOLLOW WHEN DESIGNING YOUR SYSTEM

STEP 1: selecting a GRAFIK Eye QS unit
A. Identify the number of lighting and shading zones in the space
B. Identify the load types in the space
C. Build a STANDARD GRAFIK Eye QS model number
D. Build a NON-STANDARD GRAFIK Eye QS model number

STEP 2: selecting seeTouch QS keypads
A. Select keypad style and button configurations



B. Build a seeTouch QS keypad model number



STEP 3: selecting shading components
A. Select power components for Sivoia® QS WIRELESS system
A. Select power components for Sivoia QS WIRED system
B. Select appropriate window treatments

STEP 4: selecting energy-saving devices
A. Select appropriate occupancy/vacancy sensors
B. Select daylight sensors

STEP 5: selecting integration devices
A. Determine the type of integration needed

Model # QSWS2-5BI-AL
Type seeTouch QS 5-Button Wallstation for Grafik Eye QS System
Engraving Unengraved
Style
 Insert
Finish
 Almond

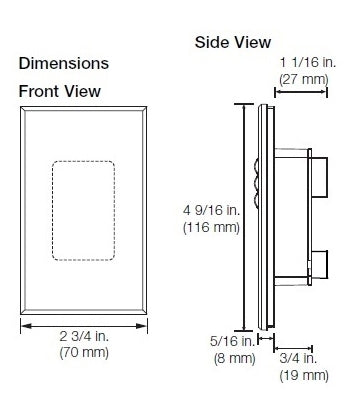

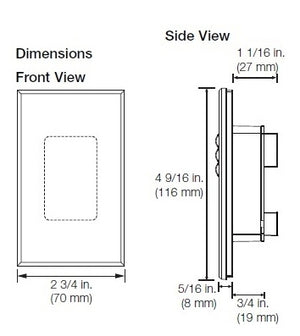

Dimensions and mounting
  • Product dimensions:
    Width: 2.75 in (70 mm)
    Height: 4.56 in (116 mm)
    Depth: 1.06 in (27 mm)
    Profile: 0.31 in (8 mm)
  • Mounts in a standard 1-gang U.S. backbox
Communication and wiring
  • Operates via low-voltage IEC PELV/NEC Class 2 standard wired communication on the QS link
  • A QS system can have up to 100 QS devices; each international seeTouch QS keypad counts as one device towards the limit
  • Uses one power draw unit on the QS link

downloads
