Lutron SG-4MN-BL-E00 SeeTouch 4-Button Master Control Wallstation For Grafik Eye 3000 System, Non Insert Style in Black Unengraved

Description

GRAFIK Eye 3000 provides an energy saving solution for both new construction and renovation projects. By controlling the light in multiple settings with numerous preset scenes, GRAFIK Eye 3000 can create dramatic environments while drastically reducing energy expenses.

GRAFIK Eye 4000 system can control the lighting in a variety of environments such as conference rooms, auditoriums, and retail spaces. In addition, the system can store numerous lighting presets and alternate between them with the touch of a button.

Features & Benefits

• Allows user to control several different areas of GRAFIK Eye lighting from one master location.
• Each button can operate a different GRAFIK Eye Control Unit or group of Control Units.

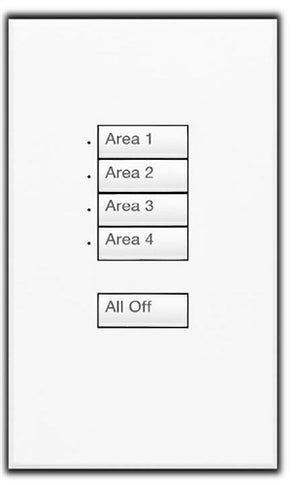

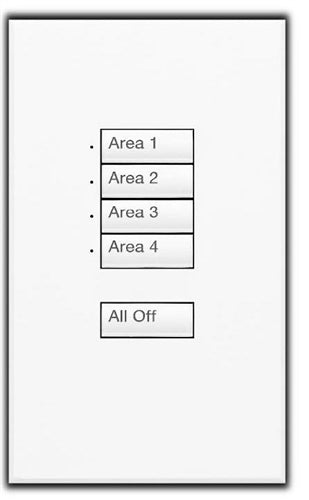

• Large, rounded buttons are easy to use.
• Backlit buttons with optional engraving make it easy to find and operate the control in low light conditions.
• Optional button engraving is angled up to the eye for easy reading.

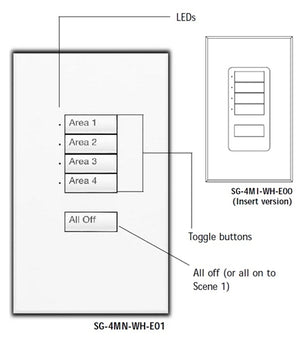

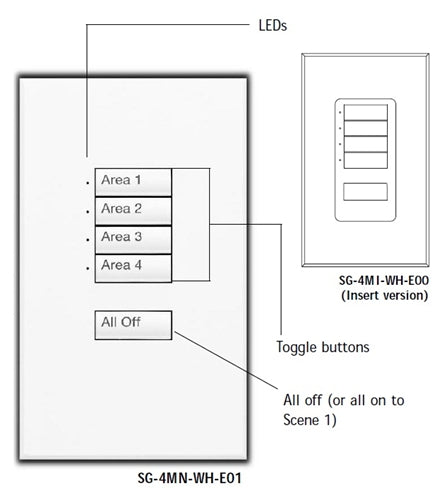

• Four toggle buttons turn their associated Control Units on (to Scene 1) and off.
• Status LEDs indicate which Control Units are on.
• The bottom button either turns all associated Control Units on (to scene 1) or off, depending on settings of DIP switches 5 and 6.
• In a home, a Master Wallstation might be placed inside the main entry. The first button would turn on foyer lights, the second button would light a path to the kitchen, etc.
• The Master Wallstation works with a total of eight GRAFIK Eye 3000 or 4000 Series Control Units. The Control Units can be assigned to buttons in any combination.


Entire-Room Controls

Model #	SG-4MN-BL-E00
Color	Black
Type	4-Button Master Wallstation
Style	Non-Model (for a refined look)
Engraving	Unengraved
Power Input	Low-voltage type Class 2 (PELV), 12/24 V Direct Current
Communications and Capacities	Low-voltage type Class 2 (PELV) wiring connects Wallstations to Control Units and other components. Up to 8 Control Units and 16 total Wallstations and/or Control Interfaces may be connected for a total of 24 control points.
Terminals	Accept up to two #18 AWG (1.0mm2) typical.

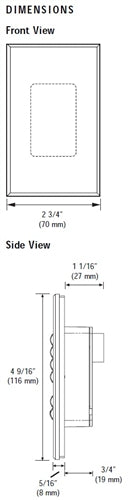

Mounting	Typical backbox dimensions: 95mm (3.74”) high, 55mm (2.17”) wide, 70mm (2.75”) deep.
