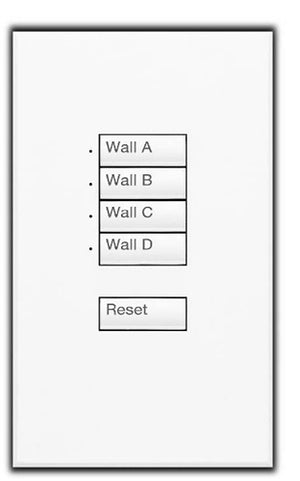

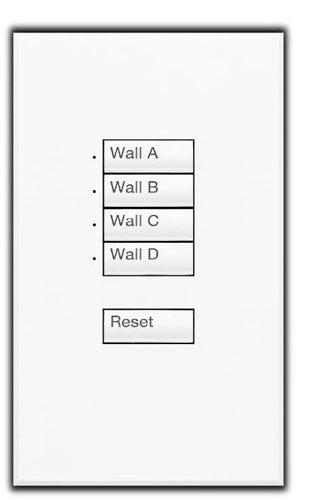

Lutron SG-4PSN-SN-EGN SeeTouch 4-Partition Control For Grafik Eye 3000 System, Non Insert Style in Satin Nickel with Engraving

Description

GRAFIK Eye 3000 provides an energy saving solution for both new construction and renovation projects. By controlling the light in multiple settings with numerous preset scenes, GRAFIK Eye 3000 can create dramatic environments while drastically reducing energy expenses.

GRAFIK Eye 4000 system can control the lighting in a variety of environments such as conference rooms, auditoriums, and retail spaces. In addition, the system can store numerous lighting presets and alternate between them with the touch of a button.

Features & Benefits

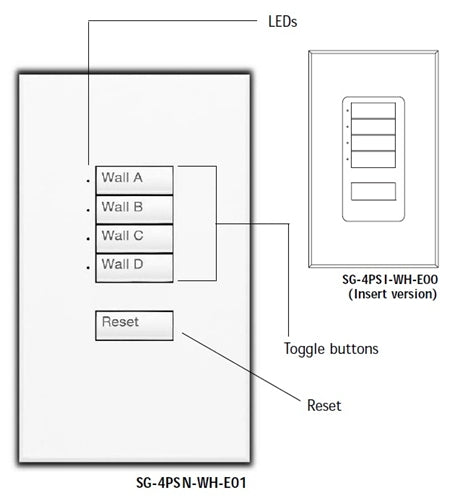

• Coordinates lighting for up to four movable walls (five rooms). Each toggle button is setup to operate the Control Units associated with a movable wall.
• Large, rounded buttons are easy to use.
• Backlit buttons with optional engraving make it easy to find and operate the control in low light conditions.
• Optional button engraving is angled up to the eye for easy reading.
• When the wall is open to make one large space, the user presses the wall’s toggle button to make the LED light up. The GRAFIK Eye Control Units assigned to the buttons now work “in combination.” Scene changes at one Control Unit occur on all of these Control Units.
• When the wall is closed to make several smaller spaces, the user presses the wall’s toggle button to turn off the LED. The Control Units now work independently.
• The bottom button resets all Control Units to independent operation.


Entire-Room Controls

Model #	SG-4PSN-SN-EGN
Color	Satin Nickel
Type	4-Partition Status Wallstation
Style	Non-Insert Model (for a refined look)
Engraving	Engraved
Power Input	Low-voltage type Class 2 (PELV), 12/24 V Direct Current
Communications and Capacities	Low-voltage type Class 2 (PELV) wiring connects Wallstations to Control Units and other components. Up to 8 Control Units and 16 total Wallstations and/or Control Interfaces may be connected for a total of 24 control points.
Terminals	Accept up to two #18 AWG (1.0mm2) typical.

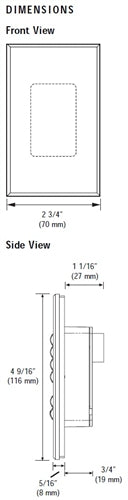

Mounting	Typical backbox dimensions: 95mm (3.74”) high, 55mm (2.17”) wide, 70mm (2.75”) deep.
