Lutron SR-4SIRN-BL-EGN SeeTouch 4-Button Replacement Kit For SG-4SIRN, Non Insert Style in Black with Engraving

Description

GRAFIK Eye 3000 provides an energy saving solution for both new construction and renovation projects. By controlling the light in multiple settings with numerous preset scenes, GRAFIK Eye 3000 can create dramatic environments while drastically reducing energy expenses.

GRAFIK Eye 4000 system can control the lighting in a variety of environments such as conference rooms, auditoriums, and retail spaces. In addition, the system can store numerous lighting presets and alternate between them with the touch of a button.

Features & Benefits

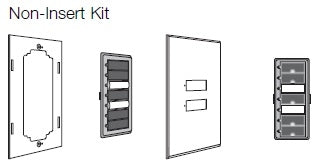

• The button replacement kit includes: an adapter, button assembly, and wallplate

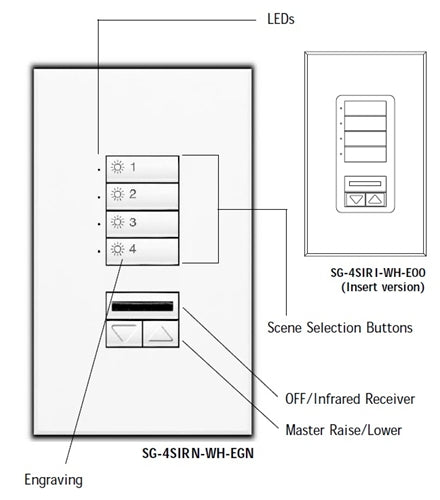

• Allows user to select and adjust scenes at the Wallstation or by Wireless Remote Control.
• Large, rounded buttons are easy to use.
• Backlit buttons with optional engraving make it easy to find and operate the control in low light conditions.
• Optional button engraving is angled up to the eye for easy reading.
• Scene selection functionality can be selected in the field.
• Infrared receiver allows infrared transmitters to select scenes and raise/lower all lighting zones.
• Off button turns all lights off.
• Status LEDs indicate which scene is selected.
• Master raise/lower button brightens or dims all lighting in the selected scene.
• Works with GRAFIK Eye 3000 and 4000 Series Control Units.
• Selects scenes in just one Control Unit or a group of up to eight Control Units.

Entire-Room Controls

Model #	SR-4SIRN-BL-EGN
Color	Black
Type	4-Button with Off, Raise/ Lower and IR Receiver Replacement Kit for SG-4SIRI
Style	Non-Insert Model (for a refined look)
Engraving	Engraved
Power Input	Low-voltage type Class 2 (PELV), 12/24 V Direct Current
Communications and Capacities	Low-voltage type Class 2 (PELV) wiring connects Wallstations to Control Units and other components. Up to 8 Control Units and 16 total Wallstations and/or Control Interfaces may be connected for a total of 24 control points.
Terminals	Accept up to two #18 AWG (1.0mm2) typical.

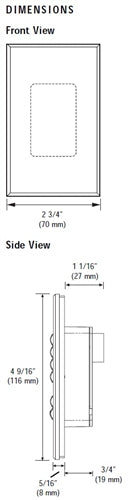

Mounting	Typical backbox dimensions: 95mm (3.74”) high, 55mm (2.17”) wide, 70mm (2.75”) deep.
