Lutron SR-7BN-WH-E00 SeeTouch 7-Button Replacement Kit For SO-7BN, Non Insert Style in White Unengraved

Description

GRAFIK Eye 3000 provides an energy saving solution for both new construction and renovation projects. By controlling the light in multiple settings with numerous preset scenes, GRAFIK Eye 3000 can create dramatic environments while drastically reducing energy expenses.

GRAFIK Eye 4000 system can control the lighting in a variety of environments such as conference rooms, auditoriums, and retail spaces. In addition, the system can store numerous lighting presets and alternate between them with the touch of a button.

Features & Benefits

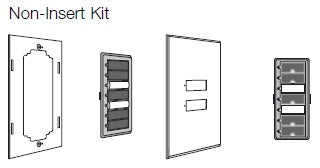

• This button replacement kit includes: an adapter, button assembly and wallplate

• Often used in entryways to turn lights on and off.
• Large, rounded buttons are easy to use.
• Backlit buttons with optional engraving make it easy to find and operate the control in low light conditions.
• Optional button engraving is angled up to the eye for easy reading.
• Functionality can be selected in the field.

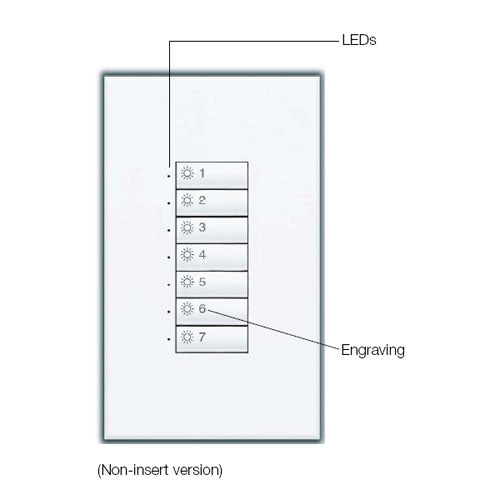

• Status LEDs indicate which button was pushed last.
• Works with GRAFIK Eye 3000 and 4000 Series Control Units.
• Invokes functions in just one Control Unit or group of up to eight Control Units.


Entire-Room Controls

Model #	SR-7BN-WH-E00
Color	White
Type	7-Button Replacement Kit
Style	Non-Insert Model (for a refined look)
Engraving	Unengraved
Power Input	Low-voltage type Class 2 (PELV), 12/24 V Direct Current
Communications and Capacities	Low-voltage type Class 2 (PELV) wiring connects Wallstations to Control Units and other components. Up to 8 Control Units and 16 total Wallstations and/or Control Interfaces may be connected for a total of 24 control points.
Terminals	Accept up to two #18 AWG (1.0mm2) typical.
Mounting	Typical backbox dimensions: 95mm (3.74”) high, 55mm (2.17”) wide, 70mm (2.75”) deep.
