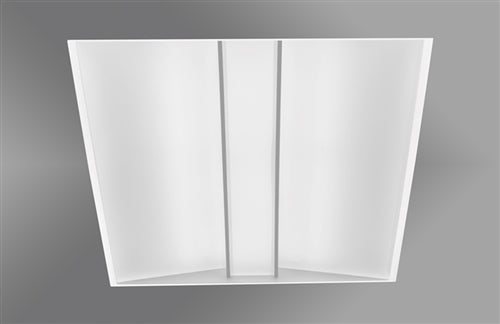

Mark Lighting WHSPR LCTR QS 2X2 80CRI 35K 3300LM MIN10 MVOLT SWC ZT 2'x2' Whisper LED Troffer, 80 CRI, 3500K, 3300 Lumens, 10% Dimming, 120-277V, Soft White Acrylic Shielding Center

PRODUCT DESCRIPTION
Gently sloping side panels give Whisper LED its depth and appealing angles. Whether units are installed in rows or individually, the look is artfully clean and simple. Whisper LED is available in 1’ x 4’, 2’ x 2’ and 2’ x 4’ sizes, and it fits perfectly in a variety of business and institutional settings including offices, schools and hospitals.
The Whisper Luminous Center is an alternate appearance to the Whisper LED that provides a unique and visually stunning aesthetic. With Luminous Center, the center element is the primary source of illumination with the side panels softly glowing, adding a captivating allure to the ceiling plane.

PRODUCT SPECIFICATIONS
Housing
Nominal 1'x4', 2’x2’ or 2’x4’ housings fabricated from 22-gauge, cold-rolled steel.

Finish
Matte-white powder coat.

Reflector
Precision-formed steel; highly reflective white.

Shielding
Hinged door frame is constructed of extruded aluminum center and side rails with cold-rolled steel end caps capturing the 3 individual optical panels, forming a single unit. The frame can be positioned on either side of the fixture housing to provide easy room side access for maintenance. Shielding options are as follows:
Center Panel: Soft-white acrylic or optional microprismatic conical de-glaring lens.
Side Panels: Soft-white acrylic.

Mounting
Accommodates 9/16" slot grid or 15/16" inverted tee or 9/16" inverted tee.
For recessed mounting in hard ceiling applications, use a Drywall Grid Adapter (DGA22, DGA24, or DGA14WHS). Ordered separately.

Design2Ship
Maximum order quantity of 250 units per order.
5 business days from clean release of the order.
