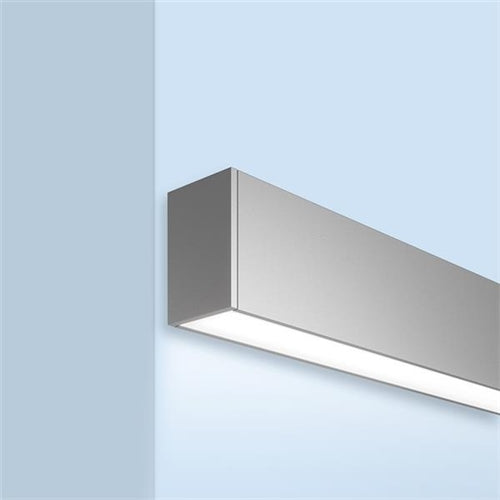

Home > Lithonia Lighting > Mark Ligthing S2WID LSL 4FT MSL4 80CRI 35K 550LMF I80CRI I35K I550LMF SCT NODIM FLL MVOLT SLVT 2' Wall Indirect Direct Linear LED, Longest Same Length, 4' Run, 80 CRI, 3500K, 550 Lumens/ Foot, 80 CRI, Single Circuit Switch, Non Dim, Silver
Mark Ligthing S2WID LSL 4FT MSL4 80CRI 35K 550LMF I80CRI I35K I550LMF SCT NODIM FLL MVOLT SLVT 2' Wall Indirect Direct Linear LED, Longest Same Length, 4' Run, 80 CRI, 3500K, 550 Lumens/ Foot, 80 CRI, Single Circuit Switch, Non Dim, Silver
Mark Ligthing S2WID LSL 4FT MSL4 80CRI 35K 550LMF I80CRI I35K I550LMF SCT NODIM FLL MVOLT SLVT 2' Wall Indirect Direct Linear LED, Longest Same Length, 4' Run, 80 CRI, 3500K, 550 Lumens/ Foot, 80 CRI, Single Circuit Switch, Non Dim, Silver
Regular price
Price:
$732.19
Regular price
Price:
Sale price
$732.19
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Housing
Housing
One-piece extruded aluminum housing
Finish
Standard colors for fixtures and end caps are polyester powder coated white, black, or silver with satin sheen. Consult factory for custom colors and RAL color options.
Optics (Distribution)
Wall Graze (WG) distributions options incorporate co-extruded lenses and films.
Asymmetric (AS) distributions incorporate injection molded, optical grade,
UV-resistant acrylic optic.
Lenses/Shielding
Indirect: Clear acrylic, dust cover (DC), frosted, acrylic dust cover (DCF), Extruded acrylic top glow lens (TGLD).
Direct: Wall Wash (WW), Wall Graze (WG), and Direct Batwing (DBW) incorporate co-extruded lenses and films.
LED Components
Multiple lumen packages available with 2700K, 3000K, 3500K, 4000K and 5000K CCT. The Acuity Brands circuit boards for the linear LED components use a precise binning algorithm which creates a consistent color temperature from board to board. The color a variation of no greater than a 2.5 Step MacAdam (2.55DECM) along the black body locus from board to board.
Electrical
Long-life LEDs, coupled with high-efficiency drivers, provide superior quantity and quality of illumination for extended service life. 90% LED lumen maintenance at 60,000 hours (L90/60,000).
Circuits
Single and dual switching options available. Dual switching offered with shared neutral.
Controls System Networking Options
Optional integrated nLight controls make each fixture addressable - allowing it to digitally communicate with other nLight enabled controls such as dimmers, switches, occupancy sensors, and photocontrols. Connection to nLight is simple. It can be accomplished with remote nLight AIR wireless or through standard Cat-5 cabling. (cabling “by others”) nLight offers unique plug-and-play convenience as devices and luminaires automatically discover each other, while nLight AIR is commissioned easily through an intuitive mobile app.
Emergency Battery (Optional)
Integral emergency battery (E10WLCP) for 90 minutes of operation. Emergency battery pack, 10W, Linear Constant Power Certified in CA Title 20 MAEDBS.
Remote generator transfer device (GTD) works in conjunction with an auxiliary generator or a central inverter system to power fixtures for safe egress lighting.
Dimming Drivers
Factory tuned constant current electronic dimming driver is standard.
Flicker free dimming available down to <1%. LED drivers perform within the recommended operating areas for flicker as a function of frequency and modulation (%) IEEE Standard 1789-2015 (IEEE Recommended Practices for Modulating Current in High-Brightness LEDs for Mitigating Health Risks to Viewers), in typical operating conditions at representative dimming levels.
Electrical specifications at maximum driver load: PF > 0.9 and THD <20%. Meets FCC Title 47 Class A or Class B. Other available drivers include Lutron and DALI protocol drivers. All drivers are RoHS compliant.
Environment
Suitable for damp location. Indoor use only.
Certification
CSA certified to meet U.S. and Canadian standards (UL1598 and UL8750).
Ambient Operating Temperature
-20°C (-4° F) to +25°C (+77°F).
Government Procurement
BAA -- Buy America(n) Act: Product qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA -- Build America Buy America: Product qualifies as produced in the United States under the definitions of the Build America, Buy America Act.
Please refer to www.acuitybrands.com/buy-american for additional information.
Fixture Weight
1 lb per foot, less packaging.
Warranty
5-year limited warranty.
Finish
Standard colors for fixtures and end caps are polyester powder coated white, black, or silver with satin sheen. Consult factory for custom colors and RAL color options.
Optics (Distribution)
Wall Graze (WG) distributions options incorporate co-extruded lenses and films.
Asymmetric (AS) distributions incorporate injection molded, optical grade,
UV-resistant acrylic optic.
Lenses/Shielding
Indirect: Clear acrylic, dust cover (DC), frosted, acrylic dust cover (DCF), Extruded acrylic top glow lens (TGLD).
Direct: Wall Wash (WW), Wall Graze (WG), and Direct Batwing (DBW) incorporate co-extruded lenses and films.
LED Components
Multiple lumen packages available with 2700K, 3000K, 3500K, 4000K and 5000K CCT. The Acuity Brands circuit boards for the linear LED components use a precise binning algorithm which creates a consistent color temperature from board to board. The color a variation of no greater than a 2.5 Step MacAdam (2.55DECM) along the black body locus from board to board.
Electrical
Long-life LEDs, coupled with high-efficiency drivers, provide superior quantity and quality of illumination for extended service life. 90% LED lumen maintenance at 60,000 hours (L90/60,000).
Circuits
Single and dual switching options available. Dual switching offered with shared neutral.
Controls System Networking Options
Optional integrated nLight controls make each fixture addressable - allowing it to digitally communicate with other nLight enabled controls such as dimmers, switches, occupancy sensors, and photocontrols. Connection to nLight is simple. It can be accomplished with remote nLight AIR wireless or through standard Cat-5 cabling. (cabling “by others”) nLight offers unique plug-and-play convenience as devices and luminaires automatically discover each other, while nLight AIR is commissioned easily through an intuitive mobile app.
Emergency Battery (Optional)
Integral emergency battery (E10WLCP) for 90 minutes of operation. Emergency battery pack, 10W, Linear Constant Power Certified in CA Title 20 MAEDBS.
Remote generator transfer device (GTD) works in conjunction with an auxiliary generator or a central inverter system to power fixtures for safe egress lighting.
Dimming Drivers
Factory tuned constant current electronic dimming driver is standard.
Flicker free dimming available down to <1%. LED drivers perform within the recommended operating areas for flicker as a function of frequency and modulation (%) IEEE Standard 1789-2015 (IEEE Recommended Practices for Modulating Current in High-Brightness LEDs for Mitigating Health Risks to Viewers), in typical operating conditions at representative dimming levels.
Electrical specifications at maximum driver load: PF > 0.9 and THD <20%. Meets FCC Title 47 Class A or Class B. Other available drivers include Lutron and DALI protocol drivers. All drivers are RoHS compliant.
Environment
Suitable for damp location. Indoor use only.
Certification
CSA certified to meet U.S. and Canadian standards (UL1598 and UL8750).
Ambient Operating Temperature
-20°C (-4° F) to +25°C (+77°F).
Government Procurement
BAA -- Buy America(n) Act: Product qualifies as a domestic end product under the Buy American Act as implemented in the FAR and DFARS. Product also qualifies as manufactured in the United States under DOT Buy America regulations.
BABA -- Build America Buy America: Product qualifies as produced in the United States under the definitions of the Build America, Buy America Act.
Please refer to www.acuitybrands.com/buy-american for additional information.
Fixture Weight
1 lb per foot, less packaging.
Warranty
5-year limited warranty.
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
