• Mark SPRLED LOP 7FT6 RLP FL 90CRI 35K 800LMF MIN1 MVOLT ZT CP 7' Fully Recessed LED, Linear Optimized Plan, Regressed Lens, 5/8" Flange Trim, 90CRI, 3500K, 800 Lumens, Dim to 1%, 0-10V, Chicago Plenum
1 1

Mark SPRLED LOP 7FT6 RLP FL 90CRI 35K 800LMF MIN1 MVOLT ZT CP 7' Fully Recessed LED, Linear Optimized Plan, Regressed Lens, 5/8" Flange Trim, 90CRI, 3500K, 800 Lumens, Dim to 1%, 0-10V, Chicago Plenum

Mark SPRLED LOP 7FT6 RLP FL 90CRI 35K 800LMF MIN1 MVOLT ZT CP 7' Fully Recessed LED, Linear Optimized Plan, Regressed Lens, 5/8" Flange Trim, 90CRI, 3500K, 800 Lumens, Dim to 1%, 0-10V, Chicago Plenum

Price: $1,803.62
Price: $1,803.62

MODEL: Mark-SPRLED-110334

Usually Ships in 3-5 business days. Urgent Project? Contact Us
Add To Wishlist
Request a Quote
Ordering a large quantity?Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS
Housing
Housing and vertical fascias are extruded aluminum. Internal wiring trays are 20-gauge, cold-rolled steel.

Housing Finish
Natural Aluminium; Fascia is high reflectance matte white .

Shielding
Extruded clear frost acrylic lens snaps into housing.

Mounting

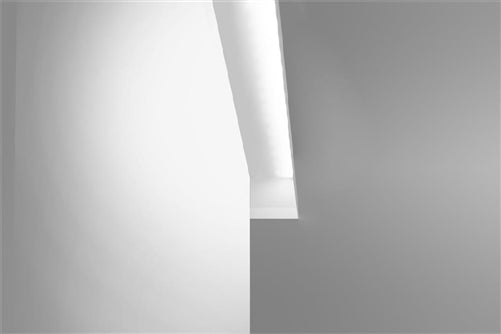

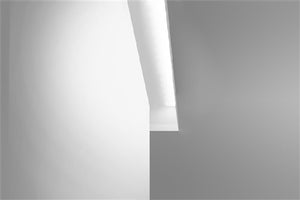

Recessed perimeter wall wash in 8', 7', 6', 5', 4', 3', and 2’ sections.

Fixture Performance - SPRL

Results based on a 4FT 80CRI 35K luminaire.
Consult factory for customized lumen and wattage based on calculated values.

Certification
CSA tested to UL 1598 standards, rated for Chicago Plenum. Rated for damp location use.

Corners
Patterns can be configured in 1' increments with illuminated 90 degrees inside or outside corners, with standard 2' corner junction lengths. For custom angles, corner or junction lengths, consult factory.

Warranty
5-year limited warranty.
