Home > Halo Lighting > McGraw-Edison GALN-SA1B-730-U-T4W-BZ Area Site LED Light, 16 LED Light Square, Light Square Count, Output Level 2, 70CRI, 3000K, 120-277V, Type IV Wide Distribution, Bronze

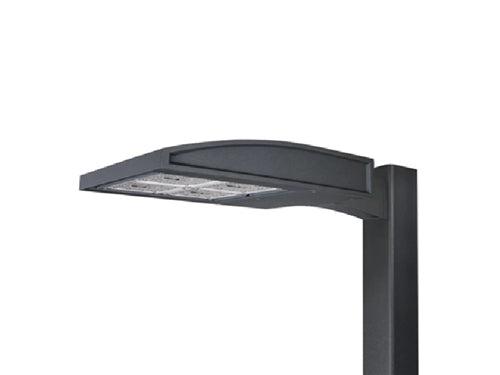

McGraw-Edison GALN-SA1B-730-U-T4W-BZ Area Site LED Light, 16 LED Light Square, Light Square Count, Output Level 2, 70CRI, 3000K, 120-277V, Type IV Wide Distribution, Bronze
McGraw-Edison GALN-SA1B-730-U-T4W-BZ Area Site LED Light, 16 LED Light Square, Light Square Count, Output Level 2, 70CRI, 3000K, 120-277V, Type IV Wide Distribution, Bronze
Regular price
Price:
$1,188.00
Regular price
Price:
Sale price
$1,188.00
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Construction
Construction
- Die-cast aluminum housing and heat sink
- Three housing sizes, using 1 to 9 light squares
- High-efficiency injection-molded AccuLED Optics technology
- 17 optical distributions for area site and roadway applications
- 3 shielding options include HSS, GRS and PFS
- IDA Certified (3000K CCT and warmer only, fixed mounting options)
- Removable power tray assembly includes drivers, surge modules and control modules for ease of maintenance and serviceability
- Standard with 0-10V dimming
- Standard with 10kV surge module, optional 20kV surge module
- Suitable for operation in -40°C to 40°C ambient environments. Optional 50°C high ambient (HA) configuration
- Luminaire available with the field adjustable dimming controller (FADC) to manually adjust wattage and reduce the total lumen output and light levels.
- Comes pre-set to the highest position at the lumen output selected

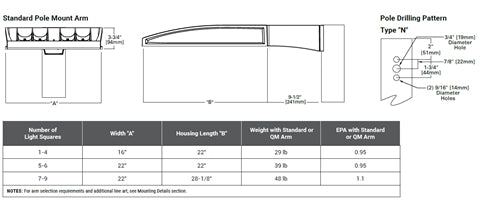

- Arms are factory installed, enabling closed-housing installation
- All arms suitable for round or square pole installation
- All arms provide clearance for multiple fixture installations at 90°
- 6 standard finishes use super durable TGIC polyester powder coat paint, providing 2.5 mil nominal thickness and salt-spray tested to 3,000 hours per ASTM B117
- RAL and custom color matches available
- Coastal Construction (CC) option salt-spray tested to 5,000 hours per ASTM B117, achieving a scribe rating of 9 per ASTM D1654
- Visit https://www.designlights.org/search/ to confirm qualification. Not all product variations are DLC qualified.
- IDA Certified (3000K CCT and warmer only, fixed mounting options)
- Outdoor, Parking Lots, Walkways, Roadways, Building Areas
- Five-year limited warranty
Download PDF Specification Share your knowledge of this product. Be the first to write a review »
