McGraw-Edison TT-D4-750-U-WQ-STM-30L-BZ-MS/DIM-L20 Top Tier Area Site LED Light, 8000 Lumens, 70 CRI, 5000K, 120-277V, Wide Distribution, Stem Mount to 1/2" Conduit, 30" Lead, Bronze, Dimming Occupancy Sensor
McGraw-Edison TT-D4-750-U-WQ-STM-30L-BZ-MS/DIM-L20 Top Tier Area Site LED Light, 8000 Lumens, 70 CRI, 5000K, 120-277V, Wide Distribution, Stem Mount to 1/2" Conduit, 30" Lead, Bronze, Dimming Occupancy Sensor
Regular price
Price:
$878.46
Regular price
Price:
Sale price
$878.46
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Construction
Construction
- Low profile, die-cast aluminum housing provides a clean, symmetric aesthetic
- Five optical distributions utilizing visual comfort waveguide technology
- 10 lumen packages, ranging from 2,757 to 22,831
- Integral uplight option utilizes a dedicated, 8W light engine, producing 920 lumens for reduced visual contrast and cave effect
- TC TotalComfort trim ring option occludes high angle light for maximum visual comfort. Peak angle and max vertical reduced by 5 degrees
- D1-D6: -40C - 50C operating temperature
- D7-D10: -40C - 40C operating temperature
- Greater than 90% lumen maintenance at 50,000 hours
- 120-277V 50/60Hz, 347V 60Hz or 480V 60Hz operation
- 10kV surge module standard
- 0-10V dimming standard

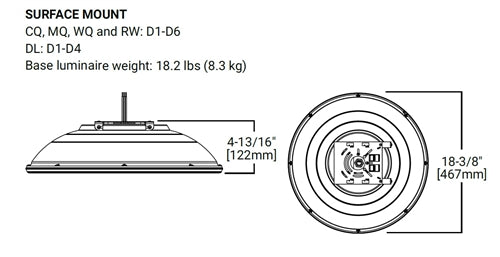

- Surface mount directly to square or octagonal 4” surface or recessed junction box using quick mount bracket
- Optional stem mount bracket with set screw for direct 1/2” or 3/4” NPS conduit mounting
- Trunnion, decorative pendant, and wall mount options also available
- For installations in locations such as gymnasiums, arenas, sports complexes, multipurpose rooms, and any other locations where the fixture potentially will be subject to impacts from external sources, the stem kit with tether (DPMST*) is required
- Parking garages, canopy, stairwells, and covered walkways
- 2.5 mil nominal TGIC powder coat thickness
- Finishes include white, black, bronze, gray, dark platinum and graphite metallic
- RAL and custom colors also available. Additional charges and lead time apply
- Visit www.designlights.org to confirm qualification. Not all product variations are DLC qualified
- IDA Certified for Dark sky for 3000K and warmer only
- IP66 rated
- FHWA and FTA agencies are utilizing their BAA rules for BABA compliance. Cooper’s products with a BAA designation are manufactured in the US and utilize a BAA COTS exemption rule for compliance.
- To verify a configured product with specific accessories and options meet BABA Domestic Preference Requirements; submit this catalog number to Cooper Lighting Quotation team for validation by our Engineering and Manufacturing teams
- Please refer to the DOMESTIC PREFERENCES website or consult the CLS Domestic Preferences team for more information. Components shipped separately may be separately analyzed under domestic preference requirements
- Five year limited warranty
