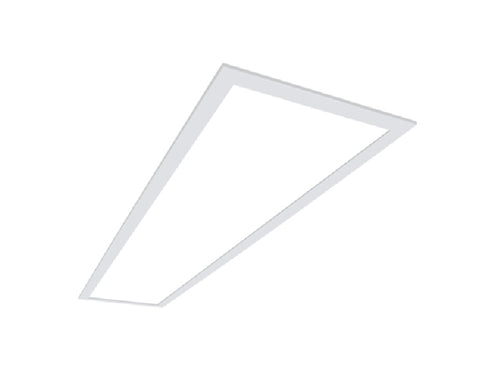

Metalux 14CGRK-L3C3-UNV-MP4 1'x4' LED Backlit Panel Retrofit Kit, Selectable Lumens, Selectable CCT 3500K/4000K/5000K

Metalux 14CGRK-L3C3-UNV-MP4 1'x4' LED Backlit Panel Retrofit Kit, Selectable Lumens, Selectable CCT 3500K/4000K/5000K

Price: $477.32
Price: $477.32

MODEL: Metalux-14CGRK-1487
Add To Wishlist
Request a Quote
Ordering a Large Quantity? Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS
Construction
  • Die-formed steel back plate is post-painted to ensure durability
  • IP5x rating for ingress protection
  • Designed for installation into conventional 1x4, 2x4, and 2x2 troffer housings
  • Mounting rails and luminaires shipped in two boxes to expedite installation and reduce project cost
  • Shipped in multi-packs of 4 to minimize packaging waste saving project time
Electrical
  • Aluminum frame weld and ground, for a seamless appearance
  • CGRK projected lumen maintenance based on TM21 testing standards is >L89@60,000 hours
  • LEDs are 80 CRI (minimum) and switch to 3500K, 4000K, or 5000K.
  • Emergency battery pack options available in 14W and 7W
  • Knock outs provided in mounting rails for emergency battery backup test indicator light
  • Default CCT/Lumen Setting:4000K/Medium
Controls
  • • Fixture comes with field selectable lumens and CCT dipswitches. Standard UNV 120-277 driver with 0-10V dimming with dim-to-off
  • • Optional integrated DLC/NLC 5.0 listed sensor and field installable emergency battery back up
  • • Optional field installable dipswitch locks enable watts per sqft. compliance and prevent end users from making modifications in the future
Optical Shielding
  • Micro-optics enable uniform distribution of LEDs for uniform lens illumination
  • Smooth, frosted lens delivers uniform illumination and surface texture to minimize scratch and impact damage
Certifications
  • cULus listed for 25C ambient environments, indoor applications
  • UL damp location listed
  • IESNA LM-79 and LM-80 standards compliant
  • DesignLights Consortium Qualified and classified for DLC Standard and DLC Premium, refer to www.designlights.org for details
  • Qualifies as State of California Title 24 high efficiency luminaire (non-residential)
  • FCC part 15 class A compliant
  • Meets IP5X rating from the room side with no modification needed
Warranty
  • Five year standard warranty
