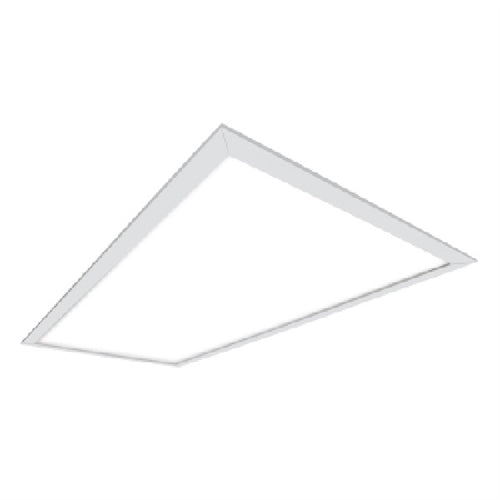

Metalux 22CGT3535C 2' x 2' General LED Panel, 32W, 3500K, 80 CRI, 3449 Lumens
Metalux 22CGT3535C 2' x 2' General LED Panel, 32W, 3500K, 80 CRI, 3449 Lumens
Regular price
Price:
$33.86
Regular price
Price:
Sale price
$33.86
Unit price
per
MODEL: Metalux-22CGT3535C
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
Construction
Construction
- Robust die-formed steel back plate is post-painted to ensure durability
- Housing is constructed with limited holes which are covered to resist debris/bug intrusion
- Aluminum bezel with mitered corners is tightly fastened to the housing
- Integral grid clips provided and include suspension / wire retention features
- Grid clip includes fold up hang points. Use FPSUS2 or other desired suspension methods for direct suspension
- "Earthquake clip" accessories are available for use where required
- Junction box constructed of code gauge galvanized steel with access plate
- Multiple Trade size KO provided and JBox is suitable for up to 12AWG wiring
- Surface and suspension kits are available to for use in grid or on hard surfaces
- Factory installed flexible cable with dimming leads options available
- Standard UNV 120 - 277V driver with 0-10V dimming to 10% standard
- Can be used with tile mounted sensor or other remotely mounted controls
- Projected lumen maintenance based on TM21 testing standards is >L84 @60,000 hours
- Driver is rated for FCC part 15 Class B for use in residential or commercial applications
- LEDs are 80 CRI (minimum) and available in 3500K, 4000K, and 5000K CCT
- Emergency battery pack options available in 7W and 14W options
- Acrylic micro-optics enable uniform distribution of the LEDs to eliminate hot spots
- White frost lens with smooth pattern delivers uniform illumination from corner to corner
- Lens is tough with surface texture to minimize damage from scratches and impact
- Indoor luminaires are cULus listed for 25C ambient environments
- IC rated for direct insulation contact
- Damp location listed
- IESNA LM-79 and LM-80 standards compliant
- DesignLights Consortium Qualified and classified for DLC Standard, refer to www.designlights.org for details.
- FCC part 15 class B (residential) compliant
- Five year warranty
